Equivalent to JXG0-0098NL 4 Port Gigabit Rj-45 Latch Up with LEDs

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

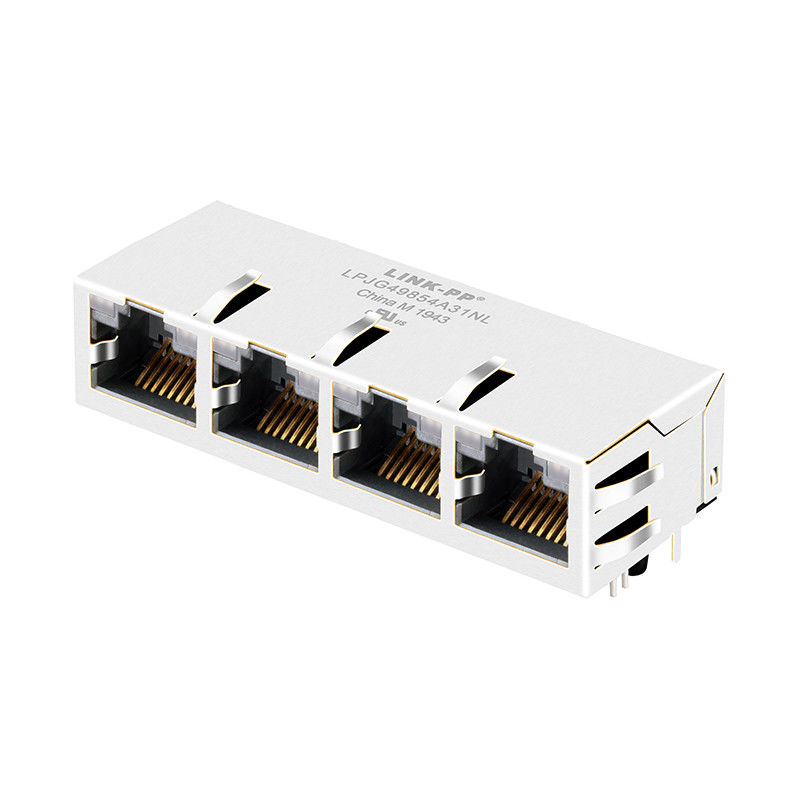

Equivalent to JXG0-0098NL 4 Port Gigabit Rj-45 Latch Up with LEDs

Equivalent to JXG0-0098NL 4 Port Gigabit Rj-45 Latch Up with LEDs
Equivalent to JXG0-0098NL 4 Port Gigabit Rj-45 Latch Up with LEDs
video play

Large Image :  Equivalent to JXG0-0098NL 4 Port Gigabit Rj-45 Latch Up with LEDs

Product Details:
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: JXG0-0098NL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Detailed Product Description
Spec: JXG0-0098NL Substitute: LPJG49854A31NL
Connector Type: Rj45 1x4 Ethernet Connector Applications: 10/100/1000 Base-T
Mounting Type: Through Hole Orientation: 90~ Angle (Right)
Termination: Solder Shielding: Shielded, EMI Finger
Highlight:

multi port connector

,

dual rj45 jack

Equivalent to JXG0-0098NL 4 Port Gigabit Rj-45 Latch Up with LEDs



Specifications JXG0-0098NL
Compatible / Cross Rf LPJG49854A31NL
Part Status Active
Connector Type RJ45
Number of Ports 4
Number of Rows 1
Applications 4x 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green, Amber - Green, Amber
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 30µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic

Equivalent to JXG0-0098NL 4 Port Gigabit Rj-45 Latch Up with LEDs 0

Equivalent to JXG0-0098NL 4 Port Gigabit Rj-45 Latch Up with LEDs 1
