ARJ11B-MASBF-LU2 1X1 Port RJ45 Modular Connector 10/100 Base-T Without LED

ARJ11B-MASBF-LU2 1X1 Port RJ45 Modular Connector 10/100 Base-T Without LED
ARJ11B-MASBF-LU2 1X1 Port RJ45 Modular Connector 10/100 Base-T Without LED ARJ11B-MASBF-LU2 1X1 Port RJ45 Modular Connector 10/100 Base-T Without LED ARJ11B-MASBF-LU2 1X1 Port RJ45 Modular Connector 10/100 Base-T Without LED

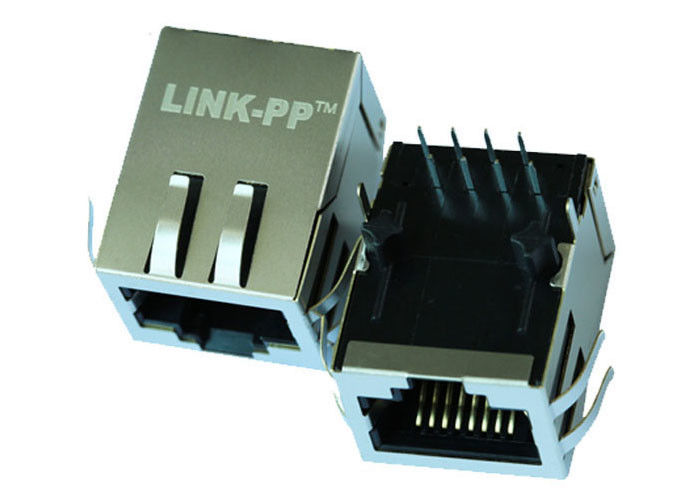

Large Image :  ARJ11B-MASBF-LU2 1X1 Port RJ45 Modular Connector 10/100 Base-T Without LED

Product Details:
Place of Origin: GuangDong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11B-MASBF-LU2
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4.5KK PCS/Month
Detailed Product Description
Designe PN: ARJ11B-MASBF-LU2 Speed: 10/100 BASE-T
LED: Without Cores: 4
Samples: Available 3 Pcs Cross RF: ARJ11B-MASBF-LU2 => LPJxxxNL
Documents Available: PDF/3D/Step/IGS/Price/Cross
High Light:

modular jacks rj45

,

industrial rj45 connector

ARJ11B-MASBF-LU2 1X1 Port RJ45 Modular Connector 10/100 Base-T Without LED



ELECTRICAL SPECFICATIONS:

1. Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT

2. OCL: 350uH Min
@100KHz,100mV,8mA bias current

3. Insertion Loss:
0.3-100MHz:-1.0dB Max

4. Return Loss(dB Min @100Ω± 15Ω):
1-30MHz:-18 40MHz:-16
50MHz:-14 60-80MHz:-12

5. Crosstalk(dB Min):
30MHz:-45 60MHz:-40
100MHz:-35

6. Common Mode Rejection(dB Min):
30MHz:-35 60MHz:-30

100MHz:-25

7. Hipot(Vrms): 1500Vrms Min



  FEATURES:

• Excellent EMI suppression
• Meet IEEE 802.3 standards and FCC mechanical requirements
• Low Cost, RoHS Compliant Reflow-able device

  APPLICATIONS:

• Border Gateway Protocol
• IP-PBX system
• set-top cable boxes

• Embedded Smart Camera



ARJ11B-MASBF-LU2 1X1 Port RJ45 Modular Connector 10/100 Base-T Without LED 0
