RJ-246TA1 10 Base-TX RJ45 Modular Jack Cross LPJ4022DNL Rj45 Female Connector

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

RJ-246TA1 10 Base-TX RJ45 Modular Jack Cross LPJ4022DNL Rj45 Female Connector

RJ-246TA1 10 Base-TX RJ45 Modular Jack Cross LPJ4022DNL Rj45 Female Connector
RJ-246TA1 10 Base-TX RJ45 Modular Jack Cross LPJ4022DNL Rj45 Female Connector

Large Image :  RJ-246TA1 10 Base-TX RJ45 Modular Jack Cross LPJ4022DNL Rj45 Female Connector

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJ-246TA1
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Part Number: RJ-246TA1 Made In China Cross: LPJ4022DNL
Samples: Free Available Mass Production: 4-5 Weeks
Speed: 10 Base-T PCB Mounting Orientation: Through Hole
High Light:

modular jacks rj45

,

industrial rj45 connector

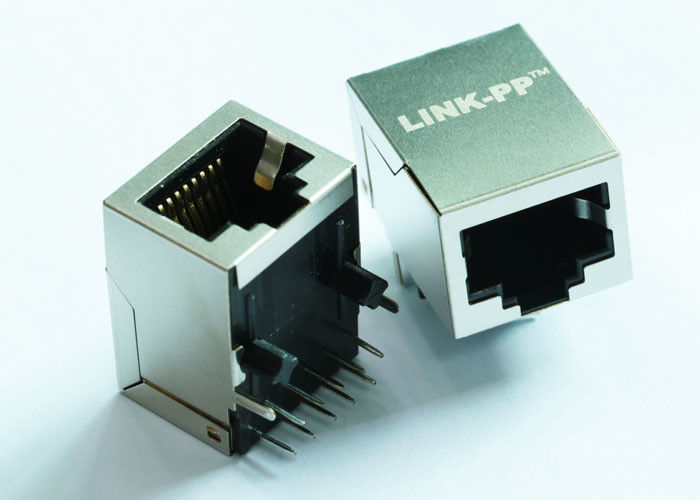

RJ-246TA1 10 Base-TX RJ45 Modular Jack Cross LPJ4022DNL Rj45 Female Connector

Quick Details
1. P C Mainboard, SDH, PDH, IP Phone, xDSL modem
2. 10 Base-TX RJ45 Modular Jack
3. Printed Circuit Board  networking and communication equipments
4. LPJ4022DNL Pin to Pin RJ-246TA1
5. Dimension : 15.90x21.30x13.40mm
6. Files : PDF/3D/ISG/Stp/Step/Datasheet

Description:

1. Product Type Features:
1) Product Type
Connector
2) Jack Type
RJ45
3) Profile
Standard
4) PCB Mounting Orientation
Through Hole
2. Mechanical Attachment:
1) Jack Configuration
1X1
3. Electrical Characteristics:
1) Shielded
Yes
4. Termination Related Features:
1) EMI Finger
Yes
2) Termination Method
Solder
5. Body Related Features:
1) Port Configuration
Stecked
2) EMI Fingers -Top and Sides
With/Without
3) Latch Orientation
Standard - Latch Down
4) PCB Tail Length
3.50±0.50mm
6. Contact Related Features:
1) Preloaded
Yes
2) Contact Termination Type
Through Hole
7. Housing Related Features:
1) Connector Style
Jack
8. Industry Standards:
1) RoHS/ELV Compliance
RoHS compliant, ELV compliant
2) Lead Free Solder Processes
Wave solder capable to 265°C
3) RoHS/ELV Compliance History
Always was RoHS compliant
9. Identification Marking:
1) Left LED Color
Without
2) Right LED Color
Without
10. Conditions for Usage:

1) Applies To
Printed Circuit Board
2) Environmental Conditions
Office / Premises
3) Operating Temperature (°C )
-40 - +85
11. Configuration Related Features
1) Magnetic Circuit
3D15
2) Status Indicator
Led
3) Decoupling Capacitor
With/Without
4) Rear PCB Ground Tab
With/Without
5) Signal Lead Quantity
4
12. Operation/Application:
1) Application
10 Base-TX

Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem, Flash Memory Cards, DSP Boards, Fibre Channel Products, Panel Computers, Matrix Switching Systems

Competitive Advantage:
16 years production experience,
2600staff,
100% test
Flexible delivery time


NOTES:

1. Designed to support application,such as SOHO(ADSL modems),

    LAN-on-Motherboard(LOM),hub and Switches.

2. Meets IEEE 802.3 specification

3. Connector Materials:

    Housing: Thermoplastic UL94V-0

    Contact / Shield : Cooper alloy

    Shield plating : Nickel

    Contact plating: Gold 6 micro-inches min.In contact area.

4. Wave solder tip temperature : 265℃ Max

    Wave solder tip temperature Time : 5 Sec Max
