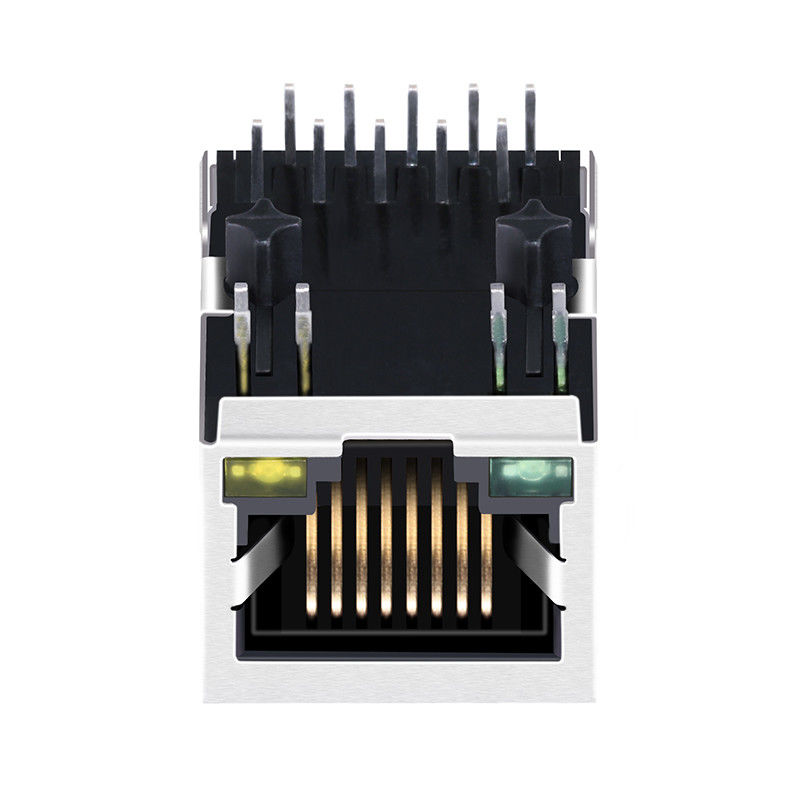

HY911130AE Gigabit RJ45 Magnetic Jack Overview

The HY911130AE is a premium Gigabit RJ45 Magnetic Jack designed to deliver robust, high-speed network connectivity for modern communication equipment. This single-port 1x1 MagJack integrates Ethernet magnetics into the RJ45 connector, reducing PCB space and simplifying network interface design.

Supporting 10/100/1000Base-T Ethernet applications, this RJ45 connector features integrated transformer modules, Green/Yellow LED indicators, and a tab-down side-entry PCB mounting design. It is suitable for Ethernet switches, routers, industrial controllers, network interface cards and embedded communication devices.

Key Features of the HY911130AE RJ45 Connector with LED

1. High-Speed Performance: Fully supports 1000 Base-T (Gigabit) Ethernet applications, ensuring excellent signal integrity and minimal data packet loss.
2. Integrated Visual Indicators: This RJ45 connector with LED features built-in Green and Yellow LEDs (G/Y), allowing end-users to easily monitor network linstatus and data activity at a glance.
3. Space-Saving Design: The integrated magnetic filters and isolation transformers eliminate the need for discrete magnetic components on your motherboard.
4. Global Compliance: Meets IEEE 802.3ab standards and is fully RoHS compliant, ensuring environmental safety and international market readiness.

Specifications of HY911130AE Gigabit RJ45 Connector with LED

HY911130AE 1000Base-T RJ45 Magnetic Jack Mechanical Specifications

HY911130AE RJ45 Drawing:

Electrical Specification @25℃:

1. Turn Ratio(±2%)

    1CT:1CT
3. HIPOT:1500Vrms MIN
4. INSERTION LOSS:
    -1.0dB MAX @ 1.0MHz TO 65MHz
5. RETURN LOSS:
    -20dB MIN @ 1MHz TO 10MHz
    -16dB MIN @ 10MHz TO 30MHz
    -12dB MIN @ 30MHz TO 60MHz
    -10dB MIN @ 60MHz TO 100MHz
6. CROSS TALK:
    -40dB MIN @ 1MHz TO 30MHz
    -35dB MIN @ 30MHz TO 60MHz
    -30dB MIN @ 60MHz TO 100MHz
7. COMMON TO COMMON MODE REJECTION:
    -30dB MIN @1MHz TO 50MHz
    -20dB MIN @50MHz TO 150MHz
8. Operating Temperature: 0℃～70℃.

Target Applications

The HY911130AE RJ45 Magnetic Jack is highly versatile. It is the connector of choice for a wide variety of networking applications, including:

- Gigabit Ethernet Switches and Routers
- Server Motherboards and Network Interface Cards (NIC)
- Industrial PCs (IPC) and Automation Controllers
- Smart Home Gateways and IoT Hubs
- Set-Top Boxes and Smart TVs

Order HY911130AE Gigabit RJ45 Magnetic Jack

Looking for a HY911130AE compatible 1000Base-T RJ45 connector with LED?

Contact LINK-PP for:

• Competitive pricing
• Free samples
• OEM customization
• Technical support

Get your quotation and datasheet today.
