XFATM9-CLYG1-4MS Tab-Down Rj45 Modular Plug Cross LPJ4012GDNL Networking

Name: XFATM9-CLYG1-4MS Tab-Down Rj45 Modular Plug Cross LPJ4012GDNL Networking
Brand: LINK-PP
SKU: XFATM9-CLYG1-4MS
Price: 0.05 USD
Availability: InStock
Rating: 4.8 (173 reviews)

Large Image : XFATM9-CLYG1-4MS Tab-Down Rj45 Modular Plug Cross LPJ4012GDNL Networking

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	XFATM9-CLYG1-4MS

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.05-$1.28
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4800K-PCS/Month

Contact Now

Detailed Product Description

PN Customer:	XFATM9-CLYG1-4MS	Made In China:	LPJ4012GDNL
Shielded:	With	Samples:	Free Available
Dimension:	15.93x21.25x13.30mm	Delivery Period:	4-5 Weeks
High Light:	rj-45 ethernet jack , industrial rj45 connector

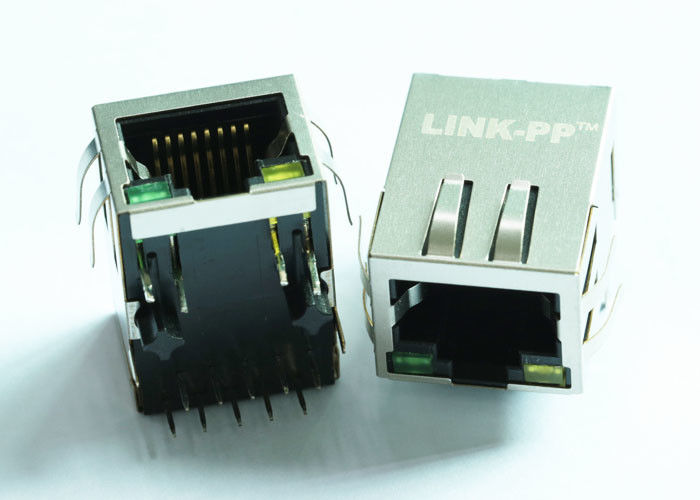

XFATM9-CLYG1-4MS Tab-Down Rj45 Modular Plug Cross LPJ4012GDNL Networking

1. 10 / 100 BASE-T Rj45 Modular Jack

2. PCB Mounting Orientation : Through Hole

3. PCB Tail Length : 3.50±0.50mm

4. Connector Style : Jack

5. XFATM9-CLYG1-4MS Cross LPJ4012GDNL

6. Manufactured Under Strict Controls

LINK-PP Part Number	LPJ4012GDNL
Designing Model	XFATM9-CLYG1-4MS
Application-Lan	ETHERNET(NoN PoE)
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	4
LED Option	YELLOW / GREEN
Latch	TAB DOWN
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
Package Height (mm)	13.30
Package Length (mm)	21.25
Package Width (mm)	15.93
Shield EMI Tabs	WITH
Speed	10/100 BASE-T
Temperature	-40 TO 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: -40℃ TO 85℃

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
3.Wave solder tip temperature: 265℃ Max,5 Sec Max.
