HR851120A Dual USB RJ45 Connectors LPJU6650BONL 10 / 100 / 1000Mbps Magnetic

Name: HR851120A Dual USB RJ45 Connectors LPJU6650BONL 10 / 100 / 1000Mbps Magnetic
Brand: LINK-PP
SKU: HR851120A
Price: 0.11 USD
Availability: InStock
Rating: 5 (108 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HR851120A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 naar usb, rj45 usb connector combo


Spec:	HR851120A	Cross PN:	LPJU6650BONL
Original Munafactuer:	LINK-PP	Application:	10/100/1000 Base-T
Termination:	Solder	LEDs:	Optional

Spec:	HR851120A
Cross PN:	LPJU6650BONL
Original Munafactuer:	LINK-PP
Application:	10/100/1000 Base-T
Termination:	Solder
LEDs:	Optional

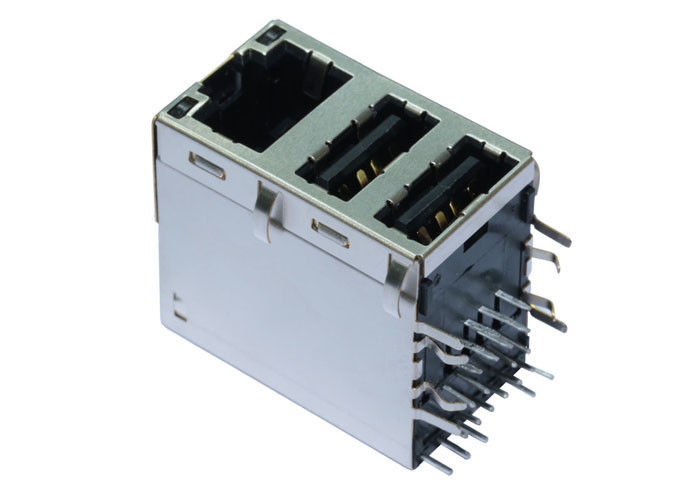

HR851120A Dual USB RJ45 Connectors LPJU6650BONL 10 / 100 / 1000Mbps Magnetic

HR851120A Dual USB RJ45 Connectors LPJU6650BONL 10 / 100 / 1000Mbps Magnetic

Quick Details

1. Gigabit RJ45 Connectors With Daul USB
3. Meets IEEE 802.3 specification
4. 350µH minimum OCL with 8mA bias current
5. High performance for maximum EMI suppression

6. Designing Model : HR851120A

7. Mass Production Model : LPJU6650BONL

LINK-PP Part Number	LPJU6650BONL
Designing Model	HR851120A
Application-Lan	ETHERNET(NoN PoE)
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	8
LED Option	GREEN,ORANGE/YELLOW
Latch	TAB UP
Number of Ports	1X1 Port with Dual USB
PCB Mount Angle	SIDE ENTRY
Package Height (mm)	31.45
Package Length (mm)	27.68
Package Width (mm)	19.08
Shield EMI Tabs	WITH
Speed	1000 BASE-T
Temperature	-40 TO 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Description

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = -40 - +85

10.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
