MIC24310-0101T-LF3 Single RJ45 Modular Jack 10/100M LPJ1014DNL Female Connector

Name: MIC24310-0101T-LF3 Single RJ45 Modular Jack 10/100M LPJ1014DNL Female Connector
Brand: LINK-PP
SKU: MIC24310-0101T-LF3
Price: 0.05 USD
Availability: InStock
Rating: 4.9 (124 reviews)

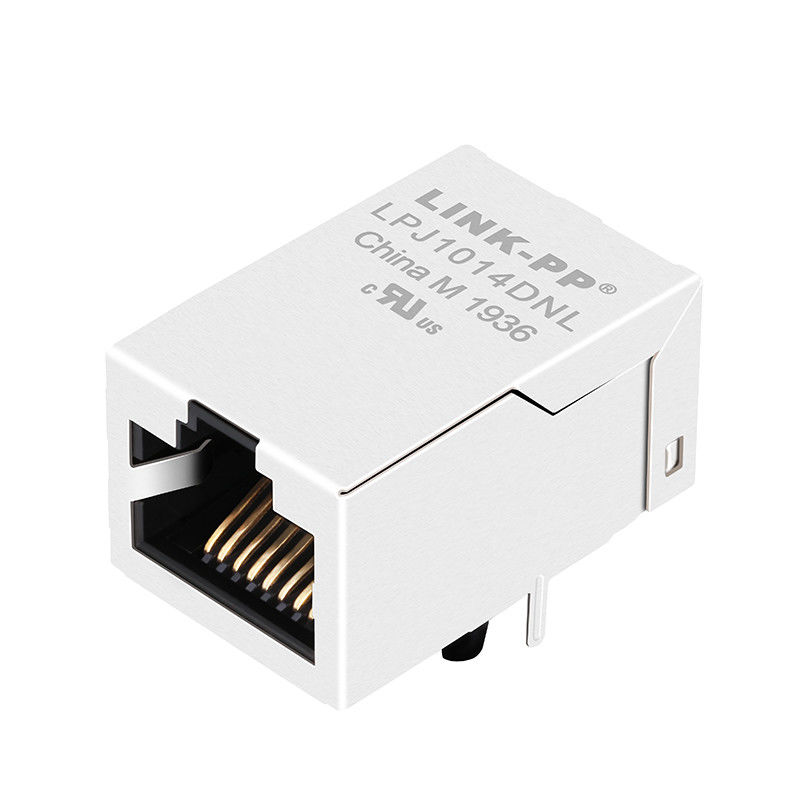

Large Image : MIC24310-0101T-LF3 Single RJ45 Modular Jack 10/100M LPJ1014DNL Female Connector

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	MIC24310-0101T-LF3

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.05-$1.28
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4200K-PCS/Month

Contact Now

Detailed Product Description

PN:	MIC24310-0101T-LF3	Made In China:	LPJ1014DNL
PCB Mounting Orientation:	Side Entry ( Right Angle )	Cores:	4
Tab:	Up	LED:	Without
High Light:	rj-45 ethernet jack , modular jacks rj45

MIC24310-0101T-LF3 Single RJ45 Modular Jack 10/100M LPJ1014DNL Female Connector

Quick Details

1. Manufactured Under Strict Controls

2. 1X1 Tab-up Without LED

3. 10/100M RJ45 modular jack

4. 25.25 length RJ45 Magjack

5. meeting IEEE 802.3af/at

Description:

LINK-PP Part Number	LPJ1014DNL
Designing Model	MIC24310-0101T-LF3
Application-Lan	ETHERNET(NoN PoE)
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	4
LED Option	WITHOUT
Latch	TAB UP
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
Package Height (mm)	13.45
Package Length (mm)	25.25
Package Width (mm)	16.15
Shield EMI Tabs	WITH
Speed	10/100 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Applications:

1. Industrial Ethernet Switches

2. layer 2 ethernet switch

3. smart home security system

4. Magnetic Shielding

Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time

MIC24310-0101T-LF3 Single RJ45 Modular Jack 10/100M LPJ1014DNL Female Connector 0
