Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: MIC24210-0104T-LF3
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
MIC24210-0104T-LF3 |
LINK-PP Part: |
LPJ0011DNL |
Standards: |
IEEE802.3 |
Ethernet: |
10/100M-bit |
Documents Available: |
PDF/3D/Step/IGS/Price/Cross |
Samples: |
Available |
Specification: |
MIC24210-0104T-LF3 |
LINK-PP Part: |
LPJ0011DNL |
Standards: |
IEEE802.3 |
Ethernet: |
10/100M-bit |
Documents Available: |
PDF/3D/Step/IGS/Price/Cross |
Samples: |
Available |

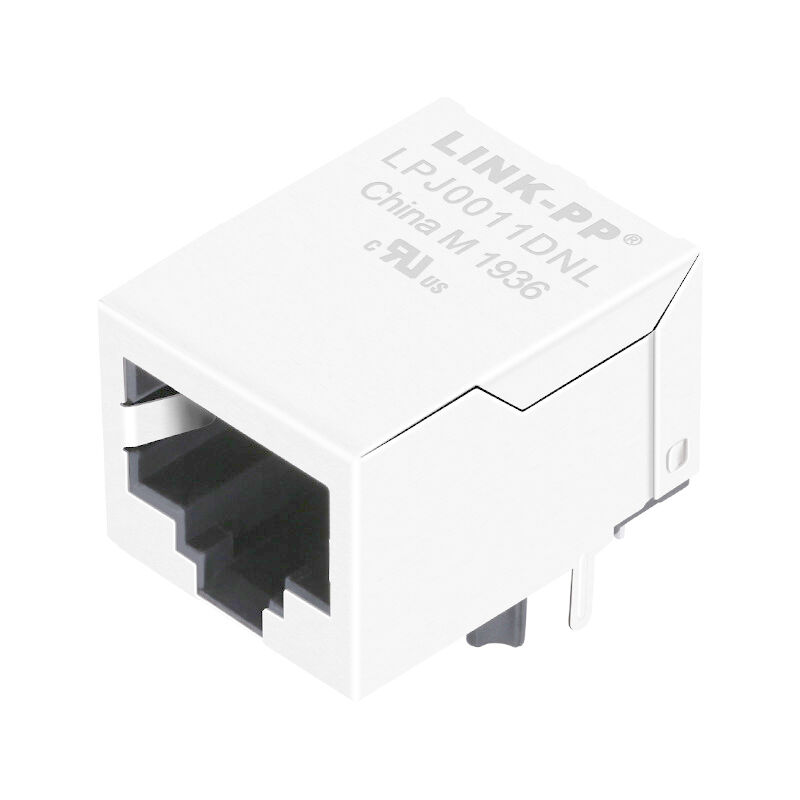

1. LINK-PP LPJ0011DNL Magnetics jack rj45
2. Magnetic RJ45 Jack IEEE 802.3u 100BASE-T
3. 10/100M AutoMDIX Data I/O connector .
4. Dimension : 15.93x21.25x13.30mm
| Turn Ratio(±2%): | TX=1CT:1 RX=1CT:1CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. |
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max,5 Sec Max.
