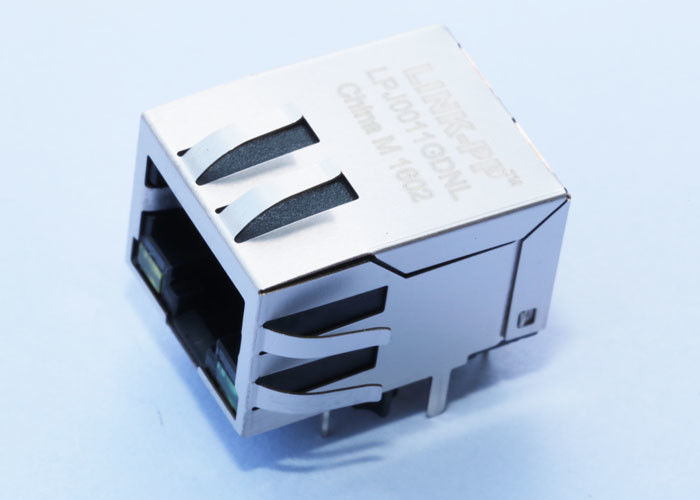

MIC24011-0104T-LF3 RJ45 Single Port 10/100Base-T LPJ0011GDNL Impedance Matching

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: MIC24011-0104T-LF3

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 300000-400000/Month

Get Best Price
Highlight:

single port rj45

,

rj45 smd connector

Specification:
MIC24011-0104T-LF3
Part No:
LPJ0011GDNL
LED Color:
YELLOW / GREEN
Jack Type:
RJ45 Female
Filter:
10/100Mbos Inside
Gender:
Female,Receptacle
Specification:
MIC24011-0104T-LF3
Part No:
LPJ0011GDNL
LED Color:
YELLOW / GREEN
Jack Type:
RJ45 Female
Filter:
10/100Mbos Inside
Gender:
Female,Receptacle
MIC24011-0104T-LF3 RJ45 Single Port 10/100Base-T LPJ0011GDNL Impedance Matching
MIC24011-0104T-LF3 RJ45 Single Port 10/100Base-T LPJ0011GDNL Impedance Matching

1. RJ45 Magjack with LED Indicators
2. IEEE 802.3 LINK-PP Rj45
LPJ0011GDNL
3. RJ45 Magjack Lan 10/100mbps Connector
4. HUB, PC card, Switch, Router applications
5. Cross Specification MIC24011-0104T-LF3
6. Sample : available 3 pcs



Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT MIC24011-0104T-LF3 RJ45 Single Port  10/100Base-T LPJ0011GDNL Impedance Matching 0
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-100MHz
Return Loss -18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
Cross talk -40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
Common Mode Rejection -40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃.



Applications:

1. Industrial Computing

2. PCMCIA Bus Interface Cards

3. Optical Storage Media

4. Ink and Toner Cartridges
