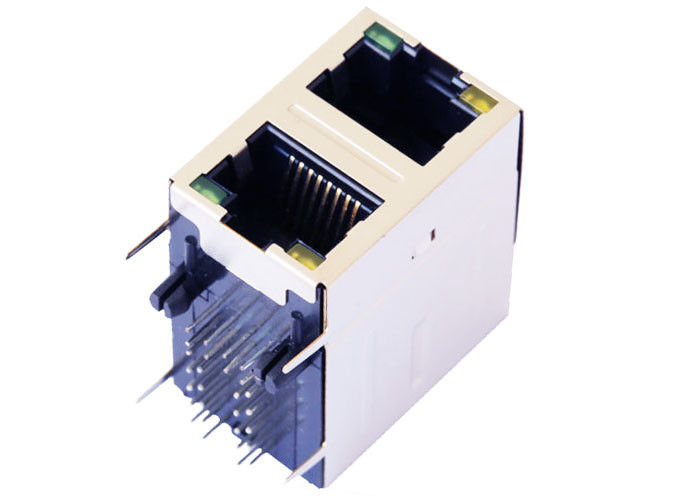

RM3-116A9V1F 2x1 Multi-port RJ45 Jack LPJG17512BHNL 10/100Base-T Shield W / LED

Name: RM3-116A9V1F 2x1 Multi-port RJ45 Jack LPJG17512BHNL 10/100Base-T Shield W / LED
Brand: LINK-PP
SKU: RM3-116A9V1F
Price: 0.11 USD
Availability: InStock
Rating: 5 (140 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: RM3-116A9V1F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 usb connector combo


Part Number:	RM3-116A9V1F	Samples:	Active&Available
Category:	Multi-port RJ45	Interface:	1000Mbps
Port:	2x1	Made In China:	LPJG17512BHNL

Part Number:	RM3-116A9V1F
Samples:	Active&Available
Category:	Multi-port RJ45
Interface:	1000Mbps
Port:	2x1
Made In China:	LPJG17512BHNL

RM3-116A9V1F 2x1 Multi-port RJ45 Jack LPJG17512BHNL 10/100Base-T Shield W / LED

RM3-116A9V1F 2x1 Multi-port RJ45 Jack LPJG17512BHNL 10/100Base-T Shield W / LED

LPJG17512BHNL pin to pin RM3-116A9V1F
Trader Part Number	RM3-116A9V1F
Made in China	LPJG17512BHNL
Manufacturer	LINK-PP China
Description	Multi FastJack 2 Ports
Documents Available	PDF/3D/Step/IGS/Price/Cross
LED Color	GREEN / YELLOW

Electrical Specifications :

1. transmitter filter & receiver filter

Type : Balance low pass 100Ω impedance

Insertion Loss :

1-100MHz : -1.0dB MAX

Return Loss ;

1-30MHz : -18dB Min . Load 100Ω

30-60MHz : -16dB Min . Load 100Ω

60-80MHz : -12dB Min . Load 100Ω

80-100MHz : -10dB Min . Load 100Ω

2. Inductance @ 100KHz , 0.1V , 8mA DC BIAS

Input ( R1-R2 ) , Input ( R3-R4 ) : 350uH Min

Input ( R5-R6 ) , Input ( R7-R8 ) : 350uH Min

3. Crosstalk : 1-100MHz : -30dB Min

4. CMR : 1-100MHz ; -30dB Min

5. Hipot Test :

Input ( R1-R2 ) to Output (C1 - C2 ) :1500VAC , 60sec

Input ( R3-R4 ) to Output (C3 - C4 ) :1500VAC , 60sec

Input ( R5-R6 ) to Output (C5 - C6 ) :1500VAC , 60sec

Input ( R7-R8 ) to Output (C7 - C8 ) :1500VAC , 60sec

6. Operating Temperature : -40 to 85℃

Applications:

1. local area network switch

2. gigabit ethernet switcher

3. Intelligent home system

4. Field bus terminal block

Professional Certification

ISO 9001:2008

UL Certification

Reach Cetitifaction

RoHS Compliance

Active Environmental Policy
