Part Number: |
RM5-1SSA9V1F |
Mass Production: |
LPJG47542A47NL |
Connector Type: |
RJ45 |
Applications: |
10/100/1000 Base-T |
Mounting Type: |
Through Hole |
Shielding: |
Shielded, EMI Finger |
Part Number: |
RM5-1SSA9V1F |
Mass Production: |
LPJG47542A47NL |
Connector Type: |
RJ45 |
Applications: |
10/100/1000 Base-T |
Mounting Type: |
Through Hole |
Shielding: |
Shielded, EMI Finger |
Designing Model: RM5-1SSA9V1F
1 Designed for network interface card application.
2 Designed to meet IEEE802.3u requirement.
3 Available in all turn ratios used by LAN ICmanufactures.
4 Simplest magnetic component to place androute on PCB.
5 Conserves minimizing PCB space.
6 Mass Production Model : LPJG47542A47NL
7 10/100/1000 gigabit ethernet
8 Magnetics Rj45
9 Rj45 integrated magnetics
10 LED optional , EMI-finger Optional

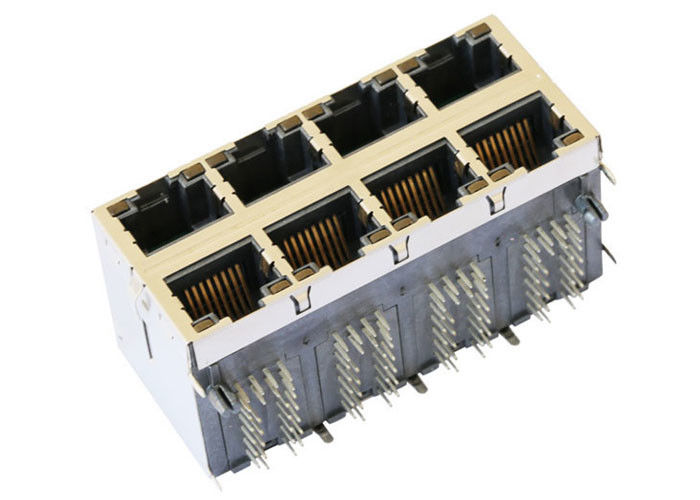

| LINK-PP Part Number | LPJG47542A47NL |
| Designing Model | RM5-1SSA9V1F |
| Application-Lan | ETHERNET |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 12 |
| LED Option | YELLOW,GREEN/YELLOW,GREEN |
| Latch | TAB UP/DOWN |
| Number of Ports | 2X4 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 25.79 |
| Package Length (mm) | 59.18 |
| Package Width (mm) | 28.35 |
| Shield EMI Tabs | WITH |
| Speed | 10/100/1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Description
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 2 x 4
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green/Yellow - 250 ohm resistor
2) Right LED Color (Position #2) = Green,Yellow - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70
11.Hipot:
1500Vrms MIN
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
