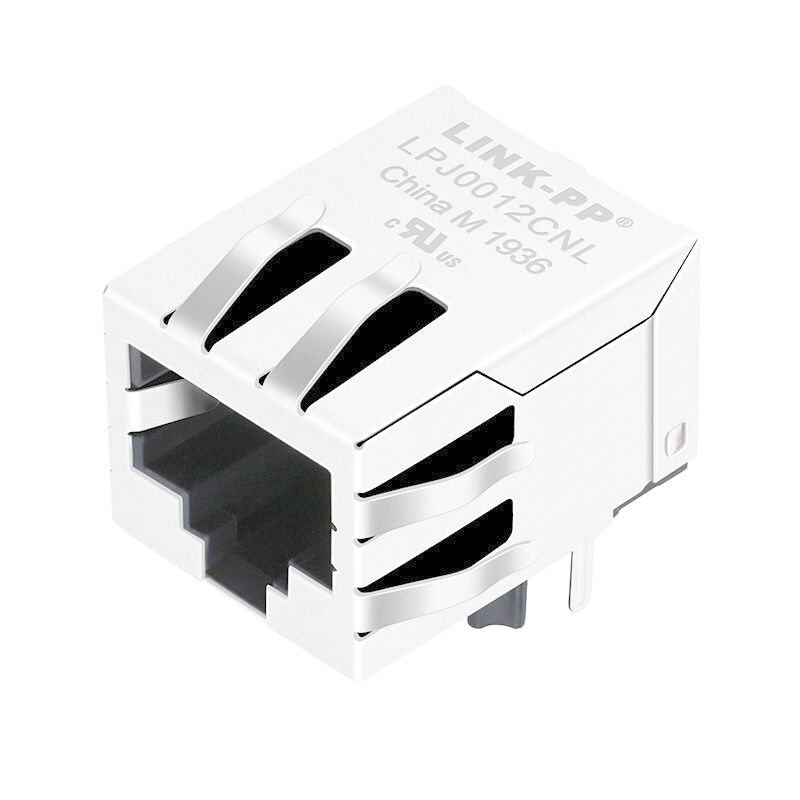

MIC24010-0101T / MIC24010-0101T-LF3 8P8C RJ45 Modular Jack Connector LPJ0012CNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: MIC24010-0101T / MIC24010-0101T-LF3

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

modular jacks rj45

,

industrial rj45 connector

PN:
MIC24010-0101T / MIC24010-0101T-LF3
Made In China:
LPJ0012CNL
Color:
Silver
PCB Mounting Orientation:
Side Entry (Right Angle)
Base:
10/100 M
Jack Configuration:
1x1 Port
PN:
MIC24010-0101T / MIC24010-0101T-LF3
Made In China:
LPJ0012CNL
Color:
Silver
PCB Mounting Orientation:
Side Entry (Right Angle)
Base:
10/100 M
Jack Configuration:
1x1 Port

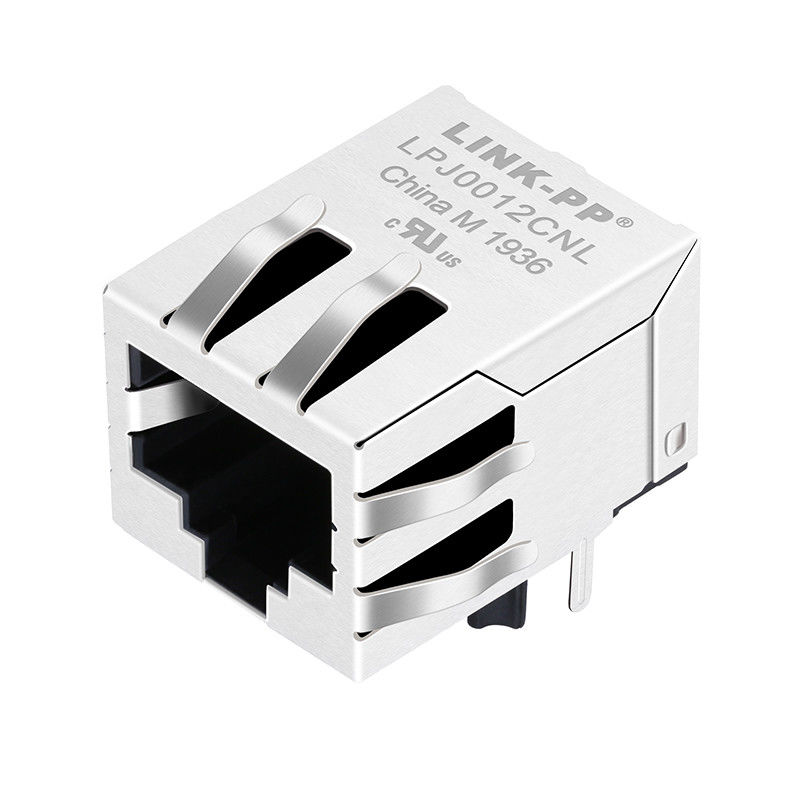

MIC24010-0101T / MIC24010-0101T-LF3 8P8C RJ45 Modular Jack Connector LPJ0012CNL
MIC24010-0101T / MIC24010-0101T-LF3 8P8C RJ45 Modular Jack Connector LPJ0012CNL

Quick Details :

1. 10/100 BASE-T RJ45 modular jack
2. 1X1 Tab-Down Without LEDs
3. RJ-45 connector integrated with Filter
4. 21.25 length RJ45 Magjack
5. Size same as RJ-45 connector to save PCB board space
7. dimensional requirement : 15.93X21.25X13.30mm

LINK-PP Part Number LPJ0012CNL MIC24010-0101T / MIC24010-0101T-LF3 8P8C RJ45 Modular Jack Connector LPJ0012CNL 0
Designing Model MIC24010-0101T / MIC24010-0101T-LF3
Application-Lan ETHERNET(NoN PoE)
Cores per Port 4
LED Option Without
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 15.93
Package Length (mm) 21.25
Package Width (mm) 13.30
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
