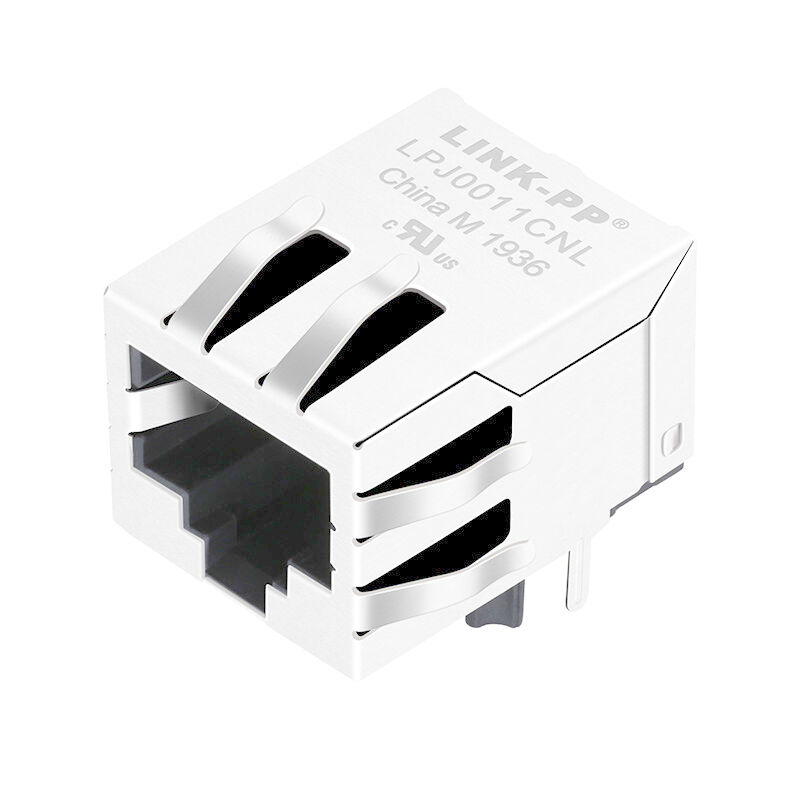

MIC24010-5104T-LF3 / MIC24010-0104T-LF3 Ethernet RJ45 Shielded Socket LPJ0011CNL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: MIC24010-5104T-LF3 / MIC24010-0104T-LF3

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350000-420000/Month

Get Best Price
Highlight:

rj45 smd connector

,

shielded rj45 plugs

Item:
MIC24010-5104T-LF3 / MIC24010-0104T-LF3
Cross Part:
LPJ0011CNL
Mounting:
Side Entry (Right Angle)
Jack Type:
RJ45 Female
Operating Temperature:
0 To 70
Samples:
Available 2 Pcs
Item:
MIC24010-5104T-LF3 / MIC24010-0104T-LF3
Cross Part:
LPJ0011CNL
Mounting:
Side Entry (Right Angle)
Jack Type:
RJ45 Female
Operating Temperature:
0 To 70
Samples:
Available 2 Pcs
MIC24010-5104T-LF3 / MIC24010-0104T-LF3 Ethernet RJ45 Shielded Socket LPJ0011CNL
MIC24010-5104T-LF3 / MIC24010-0104T-LF3 Ethernet RJ45 Shielded Socket LPJ0011CNL

1. Conserves minimizing PCB space.
2. Mass Production Model : LPJ0011CNL
3. 10/100M RJ45 Single Port
4. Dimension : 15.93x21.25x13.30mm
5. Rj45 integrated magnetics
6. LED optional , EMI-finger Optional
6. Files : PDF/3D/ISG/Stp/Step/Datasheet

MIC24010-5104T-LF3 / MIC24010-0104T-LF3 Ethernet RJ45 Shielded Socket LPJ0011CNL 0 MIC24010-5104T-LF3 / MIC24010-0104T-LF3 Ethernet RJ45 Shielded Socket LPJ0011CNL 1



Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃
