Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: MIC24010-0107T-LF3
Document: LPJ4014CNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350000-400000/Month
Connector Type: |
RJ45 Magnetic Jack |
Part Number: |
MIC24010-0107T-LF3 |
Mounting: |
Through-Hole (THT) |
Orientation: |
Right-angle (90°) Mounting |
Application: |
10/100Base-T Ethernet |
Dimensional: |
21.25X15.93X13.30mm |
Connector Type: |
RJ45 Magnetic Jack |
Part Number: |
MIC24010-0107T-LF3 |
Mounting: |
Through-Hole (THT) |
Orientation: |
Right-angle (90°) Mounting |
Application: |
10/100Base-T Ethernet |
Dimensional: |
21.25X15.93X13.30mm |
| Category | Specification / Description |
|---|---|

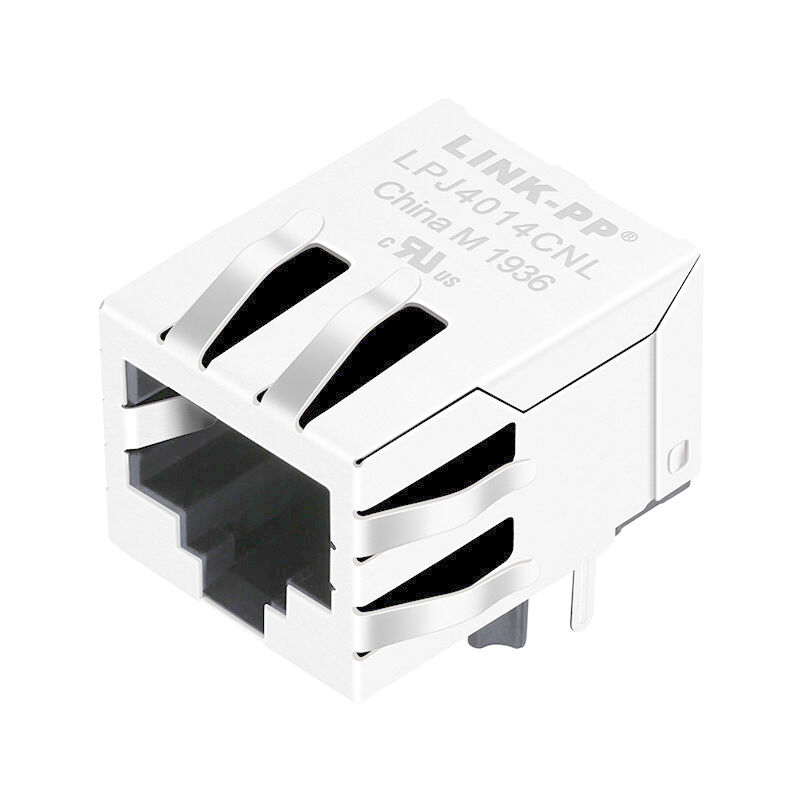

| Product Type | Integrated RJ45 Connector (Magjack) |
| Model Number | MIC24010-0107T-LF3 = LPJ4014CNL |
| Port Configuration | Single Port (1x1) |
| Speed Rating | 10/100 Base-T Ethernet |
| Connector Orientation | Tab Down, Side Entry |
| Mounting Type | Through Hole (THT) |
| Shield Type | Metal Shielded |
| LEDs | Without LED |
| Operating Temperature | -40 °C ~ +85 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Contact Plating | Gold Plated (6 µ″ / 15 µ″ / 30 µ″ options) |
| Magnetics | Integrated (Turn Ratio 1CT:1CT) |
| Circuit Type | AutoMDIX / Auto-Crossover Supported |
| PCB Mounting Style | Right Angle / Side Entry |
| Insulator Material | High-Temperature Thermoplastic (UL 94V-0) |
| Shielding Material | Nickel-plated copper alloy |
| Contact Resistance | ≤ 40 mΩ typical |
| Dielectric Withstanding Voltage | 1500 Vrms (Min, 60 Hz, 1 min) |
| Insertion/Withdrawal Durability | 750 mating cycles (min) |
| Compliance Standards | IEEE 802.3, UL Recognized, RoHS Compliant, REACH Compliant, ISO 9001 / 14001 Certified |
| Dimensions (Approx.) | L 21.25 mm × W 15.93 mm × H 13.30 mm |
| Packaging Type | Tray |
| Typical Applications | IoT Gateways, Smart Energy Meters, Solar Inverters, Industrial Controllers, Security Systems |
