ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole

China ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole supplier
ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole supplier ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole supplier ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole supplier ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole supplier ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole supplier

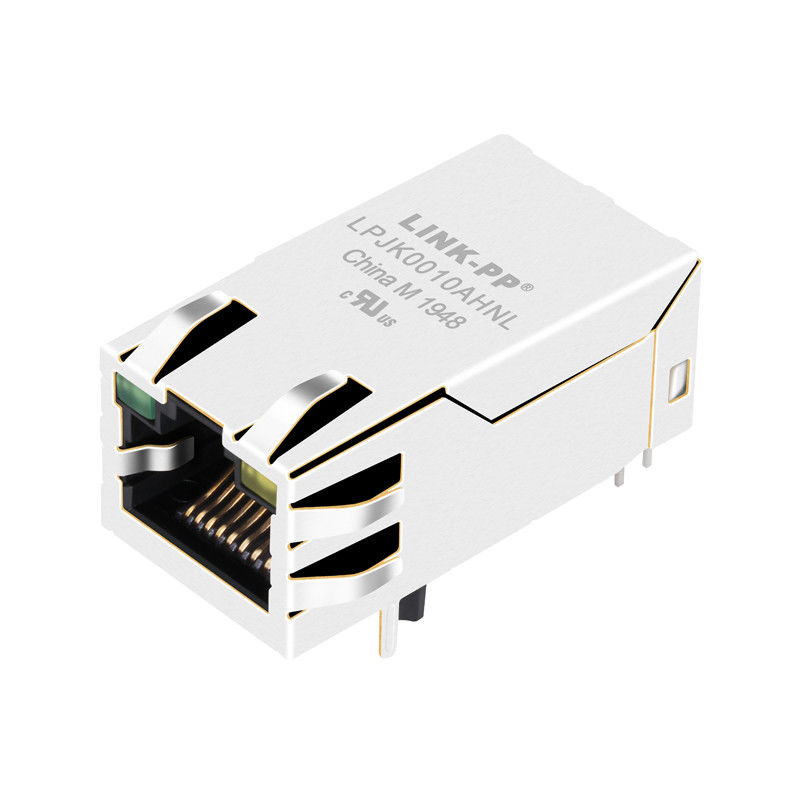

Large Image :  ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH
Model Number: ARJP11C-MASA-A-B-EMU2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Customer PN: ARJP11C-MASA-A-B-EMU2 Alternate Rf: LPJK0010AHNL
Design Flexible: Yes Samples: 1-5 Free Supportive
Transmission Speed: 10/100 Base-TX For PoE LED: GREEN / YELLOW

ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole



LINK-PP Part Number
LPJK0010AHNL ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole
Designing Model
ARJP11C-MASA-A-B-EMU2
Cores per Port
5
LED Option
GREEN/YELLOW
Latch
TAB UP
Number of Ports
1X1
PCB Mount Angle
SIDE ENTRY
Package Height (mm)
13.5
Package Length (mm)
21.5
Package Width (mm)
16.6
Shield EMI Tabs
WITH
Speed
10/100 BASE-T
Temperature
0 TO 70℃
Turns Ratio RX
1CT:1CT
Turns Ratio TX
1CT:1CT

Electrical Specifications @25℃
1.Turns Ratio(±3%):
  TX=1CT:1       RX=1CT:1CT
2.Inductance OCL :
   350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
  1-100MHz:-1.0dB max
4.Return Loss(dB min):
  1-30MHz:-18
  30-60MHz:-14
  60-80MHz:-12
5.Crosstalk(dB min):
  1-100MHz:-30
6.Common Mode Rejiction(dB min):
  1-100MHz:-30
7.Balanced DC Line Current
   350mA MAX @57VDC Continuous
   500mA MAX @57VDC For 200 Millseconds
8.Hipot:1500Vrms MIN
9.Operating Temperature: 0℃~70℃.

ARJP11C-MASA-A-B-EMU2 Pin To Pin LPJK0010AHNL RJ45 Modular Jack Through Hole

NOTES:
1. Designed to support application,such as SOHO(ADSL
    modems),LAN-on-Motherboard(LOM),hub and Switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
    Housing:Thermoplastic UL94V-0
    Contact/Shield: Copper alloy
    Shield plating: Nickel
    Contact plating: Gold 6 micro-inches min.In contact area.
4. Maximun reflow temperature is 250℃ Max, 5 Sec

5. UL Certification: File Number E484635
