RJHSE-7360 Lan Transformer RJ45 Modular Jack LPJE101CNL-6P 10/100M RJ45 Jack
Quick Details
1. Enthenet Connecter RJ 8p6c shielded THT
2. 1X1 Tab-UP RJ45 Modular Jack
3. Package: Tray
4. RJ-45 connector integrated with Filter
5. Reduce EMI radiation, Improve EMI performance
6. Conserves minimizing PCB space
| Part Number |
RJHSE-7360 |
Height(mm) |
13.1 |
| Cross Compatible |
LPJE101CNL-6P |
Length(mm) |
15.75 |
| Manufacturer |
LINK-PP |

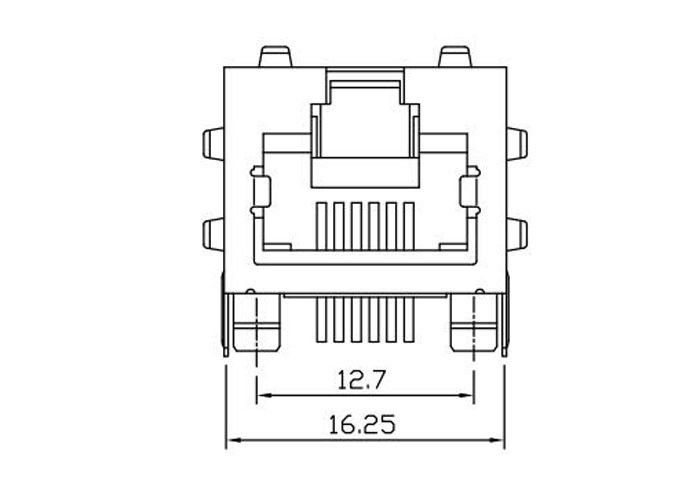

Width(mm) |
16.25 |
| Speed |
Cat3,5 Base-T |
Number of Port |
1 |
| Tab |
Up |
Turns Ratio (Np:Ns) |
1:1; 1:1 |
Description:
1X1 Tab-up 10/100M RJ45 Magjack, meeting IEEE 802.3af/at
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
