Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RM7-ZZ-0002
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Product Name: |
RM7-ZZ-0002 |
RJ45 Connector: |
2X6 Port Muti-port,Custom |
Plating: |
Gold Or Tin Plate,OEM |
Gender: |
Female,Receptacle |
Application: |
PCB,networking And Communication Equipments |
Base: |
1000M |
Product Name: |
RM7-ZZ-0002 |
RJ45 Connector: |
2X6 Port Muti-port,Custom |
Plating: |
Gold Or Tin Plate,OEM |
Gender: |
Female,Receptacle |
Application: |
PCB,networking And Communication Equipments |
Base: |
1000M |
Quick Details

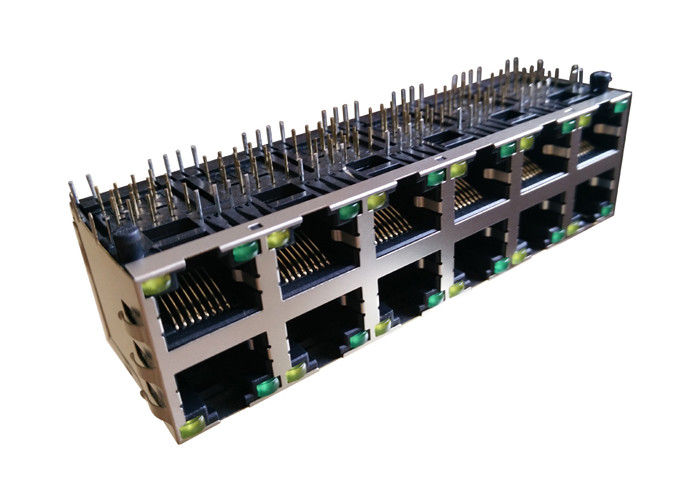

1. 2X6 Multi-port RJ45 connector
2. RJ45 Jack without magnetic modules
3. Shielded RJ45 Modular Jack
4. Router, PC Mainboard, SDH, PDH
5. Reduce EMI radiation, Improve EMI performance
6. Designed to meet IEEE802.3u requirement
Description:
| LINK-PP Part Number | LPJG67537A47NL |
OCL:(@ 100KHz,0.1V,8mA DC Bias) 350uH MIN Turn Ratio(±2%): PRI : SEC=1CT :1CT ±2% Insertion Loss : -1.0dB MAX @ 1-100MHz Return Loss : -18dB MIN @ 1-30MHz -16dB MIN @ 30-60MHz -12dB MIN @ 60-80MHz -10dB MIN @ 80-100MHz Cross talk : -30dB MIN @ 1-100MHz Common Mode Rejection : -30dB MIN @ 1-100MHz Hipot : 1500Vrms MIN Operating Temperature Range : -40℃ TO 85℃ |
| Designing Model | RM7-ZZ-0002 | |
| Cores per Port | 8 | |
| LED Option | G,Y/Y,G | |
| Latch | TAB UP/DOWN | |
| Number of Ports | 2X6 | |
| PCB Mount Angle | SIDE ENTRY | |
| Package Height (mm) | 25.79 | |
| Package Length (mm) | 87.12 | |
| Package Width (mm) | 28.35 | |
| Shield EMI Tabs | WITH | |
| Speed | 1000 BASE-T | |
| Temperature | -40 TO 85℃ | |
| Turns Ratio RX | 1CT:1CT | |
| Turns Ratio TX | 1CT:1CT |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
