Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: SI-30007-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Product Name: |
SI-30007-F |
RJ45 Connector: |
2 X 4 Port Muti-port,Custom |
Plating: |
Gold Or Tin Plate,OEM |
Gender: |
Female,Receptacle |
Application: |
SDH, PDH, IP Phone, XDSL Modem |
Pin To Pin: |
SI-30007-F => LPJ47252CNL |
Product Name: |
SI-30007-F |
RJ45 Connector: |
2 X 4 Port Muti-port,Custom |
Plating: |
Gold Or Tin Plate,OEM |
Gender: |
Female,Receptacle |
Application: |
SDH, PDH, IP Phone, XDSL Modem |
Pin To Pin: |
SI-30007-F => LPJ47252CNL |
Quick Details

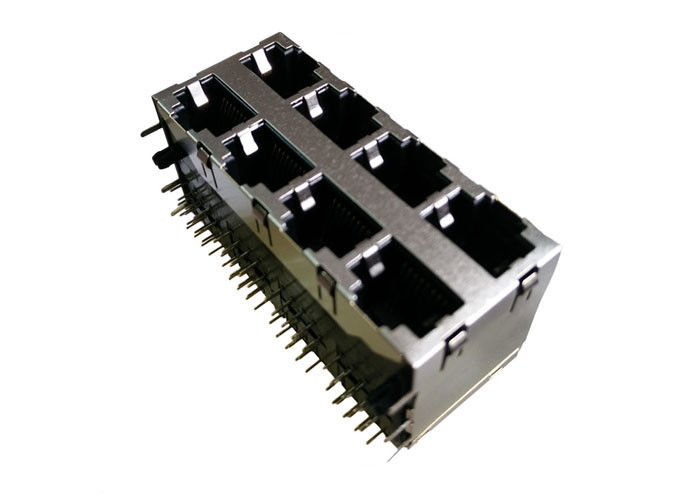

1. stacked RJ45 connector
2. RJ45 Jack with magnetic modules
3. Shielded RJ45 Modular Jack
4. Router, PC Mainboard, SDH, PDH
5. File : PDF/3D/ISG/Stp/Step/Datasheet
6. Samples : Free Available
| Part Number | SI-30007-F | Height(mm) | 25.30 |
| Cross Compatible | LPJ0026GDNL | Length(mm) | 59.70 |
| Manufacturer | LINK-PP | Width(mm) | 28.0 |
| Cores | 2 | Number of Port | 2x4 |
| LED | Without | Turns Ratio (Np:Ns) | 1:1; 1:1 |
Description:
2X4 RJ45 Magjack without leds, meeting IEEE 802.3af/at
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 2 x 4
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
