Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RT7-104AG41A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350000-400000/Month
Customer PN: |
RT7-104AG41A |
Replace: |
LPJ16208CYNL |
Tab: |
Up |
Samples: |
Available 2 Pcs |
Speed: |
10/100 Base-t |
Files: |
3D File , STEP , IGS |
Customer PN: |
RT7-104AG41A |
Replace: |
LPJ16208CYNL |
Tab: |
Up |
Samples: |
Available 2 Pcs |
Speed: |
10/100 Base-t |
Files: |
3D File , STEP , IGS |

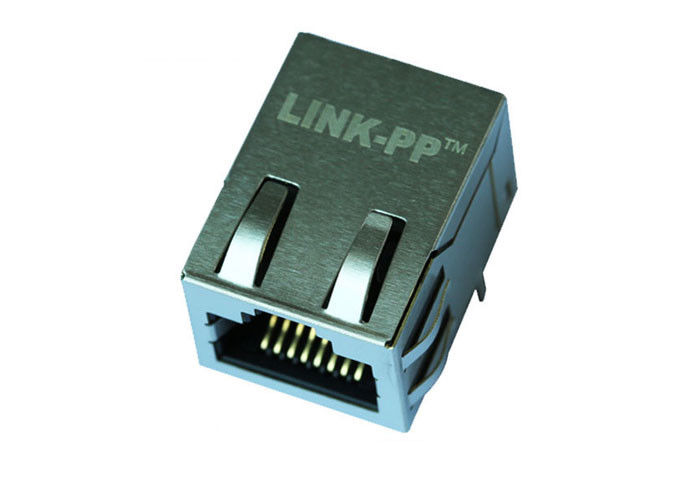

| LINK-PP Part Number | RT7-104AG41A |
| Designing Model | LPJ16208CYNL |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| LED Option | Without |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 13.45 |
| Package Length (mm) | 21.25 |
| Package Width (mm) | 15.95 |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
LINK-PP RJ45 Designed for BeagleBone Black of Texas Instrument
http://www.ti.com/tool/beaglebk#0
a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.
LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
