Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RU1-1Q1A9WGF
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specifications: |
RU1-1Q1A9WGF |
RJ45 Shielded: |
Yes |
Ethernet: |
1000 Mbps Power |
Indicator: |
Flexible Design |
Files: |
3D / Step/IGS/PDF |
Equivalent: |
LPJU5201B26NL |
Specifications: |
RU1-1Q1A9WGF |
RJ45 Shielded: |
Yes |
Ethernet: |
1000 Mbps Power |
Indicator: |
Flexible Design |
Files: |
3D / Step/IGS/PDF |
Equivalent: |
LPJU5201B26NL |

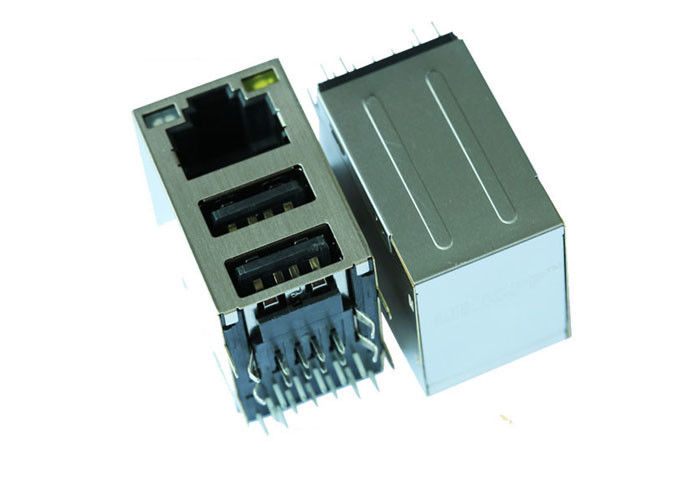

1. USB Combo RJ45 Magnetics
2. Rj45 With Dual port USB
3. RJ45 Connector With 1000 Base- TX Jack
4. Documents Available : PDF / 3D / Step / IGS / Price / Cross
| Turn Ratio(@100KHz,0.1v): | Pri : Sec = 1CT:1CT (±2%) |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-100MHz |
| Return Loss | -18dB MIN @ 1-30MHz |
| -16dB MIN @ 30-60MHz | |
| -12dB MIN @ 60-80MHz | |
| Cross talk | -40dB MIN @ 1-10MHz |
| -35dB MIN @ 32-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500VAC FOR 60 SECONDS |
| Operating Temperature Range | 0℃ TO 70℃ |
NOTES:
1. Designed to support application,such as SOHO(ADSLmodems),LAN-on- Motherboard(LOM),hub and Switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
USB Contact plating : Gold flash
4. Wave solder tip temperature: 265℃ Max, 5 Sec Max
5. UL Certification: File Number E484635
