0816-1X1T-80 RJ45 1000 Base-T Jack with Magnetic Module With PoE LPJK1046CNL

Name: 0816-1X1T-80 RJ45 1000 Base-T Jack with Magnetic Module With PoE LPJK1046CNL
Brand: LINK-PP
SKU: 0816-1X1T-80
Price: 0.05 USD
Availability: InStock
Rating: 4.5 (198 reviews)

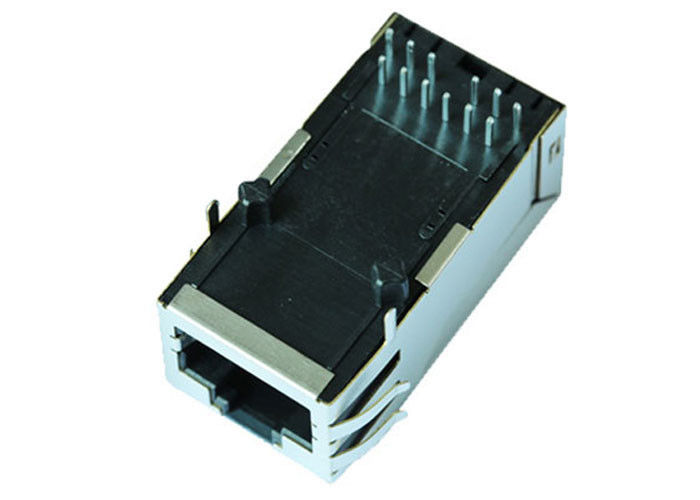

Large Image : 0816-1X1T-80 RJ45 1000 Base-T Jack with Magnetic Module With PoE LPJK1046CNL

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	0816-1X1T-80

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.05-$1.28
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	250000-320000/Month

Contact Now

Detailed Product Description

Specification:	0816-1X1T-80	Part No:	LPJK1046CNL
Mounting:	Side Entry (Right Angle)	Jack Type:	RJ45
Ethernet:	1x10/100/1000 Mbps	Samples:	Available 2-3 Pcs
High Light:	rj-45 ethernet jack , modular jacks rj45

0816-1X1T-80 RJ45 1000 Base-T Jack with Magnetic Module With PoE LPJK1046CNL

1X1 Tab-Up RJ45 Jack With PoE
10/100/1000 M RJ45 Single Port
Magnetic 8 cores RJ45
Dimension : 13.50X32.50 16.60mm
Suitable for RoHS compliant reflow

LINK-PP Part Number	LPJK1046CNL
Designing Model	0816-1X1T-80
Cores per Port	8
LED Option	Without
Latch	TAB UP
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
Package Height (mm)	13.5
Package Length (mm)	32.5
Package Width (mm)	16.6
Shield EMI Tabs	WITH
Speed	10/100/1000 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Applications

1. CompactPCI Extenders and PXI Extenders

2. PCI Express Products

3. Teach Pendants

4. Ink and Toner Cartridges

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

0816-1X1T-80 RJ45 1000 Base-T Jack with Magnetic Module With PoE LPJK1046CNL
