ARJ11B-MASAV-LU2 Tab Down Rj45 8p8c Modular Connector 6 Cores 10/100 Base-T

Name: ARJ11B-MASAV-LU2 Tab Down Rj45 8p8c Modular Connector 6 Cores 10/100 Base-T
Brand: LINK-PP
SKU: ARJ11B-MASAV-LU2
Price: 0.05 USD
Availability: InStock
Rating: 4.9 (185 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: ARJ11B-MASAV-LU2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj-45 ethernet jack, industrial rj45 connector


Spec:	ARJ11B-MASAV-LU2	Interface:	10/100
Samples:	Free Available	Equivalent:	LPJxxxxNL
Dimension:	13.84x21.59x16.26mm	File:	PDF/3D/ISG/Stp/Step/Datasheet

Spec:	ARJ11B-MASAV-LU2
Interface:	10/100
Samples:	Free Available
Equivalent:	LPJxxxxNL
Dimension:	13.84x21.59x16.26mm
File:	PDF/3D/ISG/Stp/Step/Datasheet

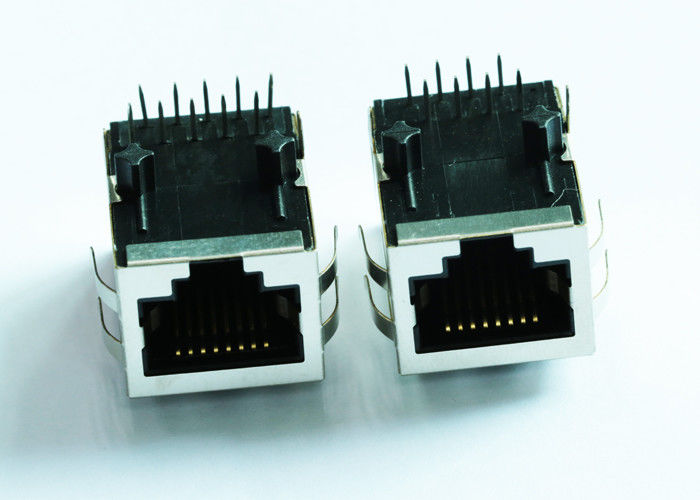

ARJ11B-MASAV-LU2 Tab Down Rj45 8p8c Modular Connector 6 Cores 10/100 Base-T

ARJ11B-MASAV-LU2 Tab Down Rj45 8p8c Modular Connector 6 Cores 10/100 Base-T

ARJ11B-MASAV-LU2 Pin To Pin Compatible
LPJxxxNL Equivalent to ARJ11B-MASAV-LU2
10/100M Ethernet Port Female Jack
Tab Down Rj45 8p8c Modular Connector

Specifications	ARJ11B-MASAV-LU2
REACH Compliant	Yes
EU RoHS Compliant	Yes
Cross Compatible	LPJxxxNL
Approvals	UL
Insertion Loss	1.0 dB
Isolation Voltage	1500.0 V
Operating Temperature	0 TO 70
Primary Inductance	350
Turns Ratio (Np:Ns)	1:1; 1:1
Height(mm)	5.51 mm
Length(mm)	17.53 mm
Width(mm)	12.2 mm

RJ-45 connector integrated with Filter
Size same as RJ-45 connector to save PCB board space
Reduce EMI radiation, Improve EMI performance
High performance for maximum EMI suppression.
ISO9001,SGS,UL,CE,REACH
Embedded mini PCI express Cellular modemfrom SierraWireless
Reduce EMI radiation, Improve EMI performance
Certified on all major carrier networks,attractive for network interface cards(NICS)Single port,
Multi-port and Stackable configurations (Thru-hole/ SMT)
Reduces the number of components to be placed on the board
Frees up board space and offers signal protection
Noise reduction in the system
Improved reliability and optimal system performance
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
Helps manufacturers reach their goals of cost reduction
