ARJ11B-MASAW-LU2 8P8C 90 Degree Rj45 Modular Jack With Magnetics EMI Finger

Name: ARJ11B-MASAW-LU2 8P8C 90 Degree Rj45 Modular Jack With Magnetics EMI Finger
Brand: LINK-PP
SKU: ARJ11B-MASAW-LU2
Price: 0.05 USD
Availability: InStock
Rating: 5 (187 reviews)

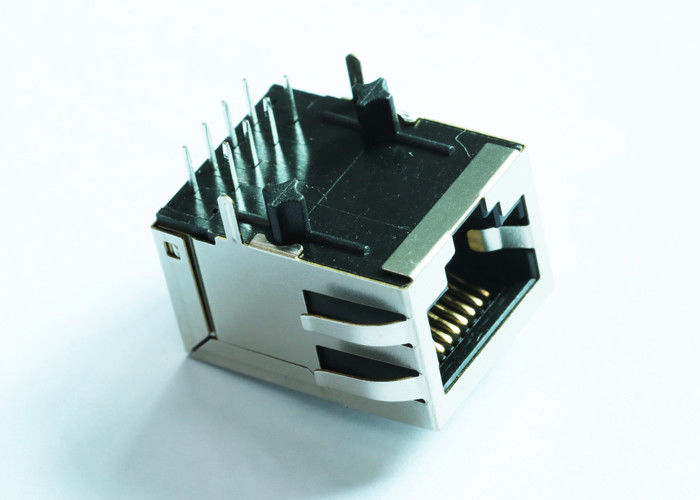

Large Image : ARJ11B-MASAW-LU2 8P8C 90 Degree Rj45 Modular Jack With Magnetics EMI Finger

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	ARJ11B-MASAW-LU2

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.05-$1.28
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4200K-PCS/Month

Contact Now

Detailed Product Description

PN:	ARJ11B-MASAW-LU2	Replace:	LPJxxxxNL
Color:	Silver	PCB Mounting Orientation:	Side Entry (Right Angle)
Base:	10/100 M	Jack Configuration:	1x1 Port
High Light:	rj-45 ethernet jack , industrial rj45 connector

ARJ11B-MASAW-LU2 8P8C 90 Degree Rj45 Modular Jack With Magnetics EMI Finger

Quick Details :

10/100 BASE-T RJ45 modular jack ARJ11B-MASAW-LU2
1X1 Tab-Down Without LEDs
RJ-45 connector integrated with Filter
Size same as RJ-45 connector to save PCB board space
File : PDF/3D/ISG/Stp/Step/Datasheet

LINK-PP Part Number	LPXXXNL
Designing Model	ARJ11B-MASAW-LU2
Application-Lan	ETHERNET(NoN PoE)
Cores per Port	4
LED Option	Without
Latch	TAB DOWN
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
Package Height (mm)	16.26
Package Length (mm)	21.59
Package Width (mm)	13.84
Shield EMI Tabs	WITH
Speed	10/100 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Applications:

PCMCIA Bus Interface Cards

Projection Screens

Spectrum Analyzers and Signal Analyzers

Multibus Boards

Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time
