Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

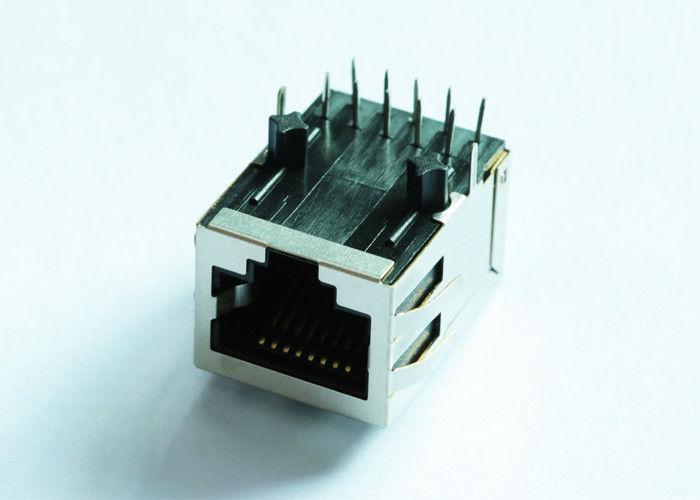

Model Number: ARJ11B-MASAZ-LU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 20pcs/Tray or Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 100K-PCS/Month
Specifications: |
ARJ11B-MASAZ-LU2 |
Equivalent: |
LPJxxxxNL |
Ethernet: |
10/100 M GE |
Standard: |
IEEE802.3 |
Mounting: |
THT |
Family: |
Integrated Magnetic Rj45 Connector |
Specifications: |
ARJ11B-MASAZ-LU2 |
Equivalent: |
LPJxxxxNL |
Ethernet: |
10/100 M GE |
Standard: |
IEEE802.3 |
Mounting: |
THT |
Family: |
Integrated Magnetic Rj45 Connector |
| Part Number | ARJ11B-MASAZ-LU2 |
| Turns Ratio ±5% | TX=1CT:1CT RX=1CT:1CT |
| EMI Fingers | YES |
| LED(L/R) | WITHOUT |
| Insertion Loss (dB max) | -1dB MIN @ 0.3-100MHz |
| Return Loss (dBmin @ 100Ω±15Ω) | -18dB MIN @ 1-30MHz |
| -16dB MIN @ 40MHz | |
| -14dB MIN @ 50MHz | |
| -12dB MIN @ 60-80MHz | |
| Crosstalk (dB min) | -45dB MIN @ 30MHz |
| -40dB MIN @ 60MHz | |
| -35dB MIN @ 100MHz | |
| Common Mode Rejection (dB min) | -35dB MIN @ 30MHz |
| -30dB MIN @ 60MHz | |
| -25dB MIN @ 100MHz | |
| HiPot | @ 1500 Vrms |
|
|
APPLICATIONS
