Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

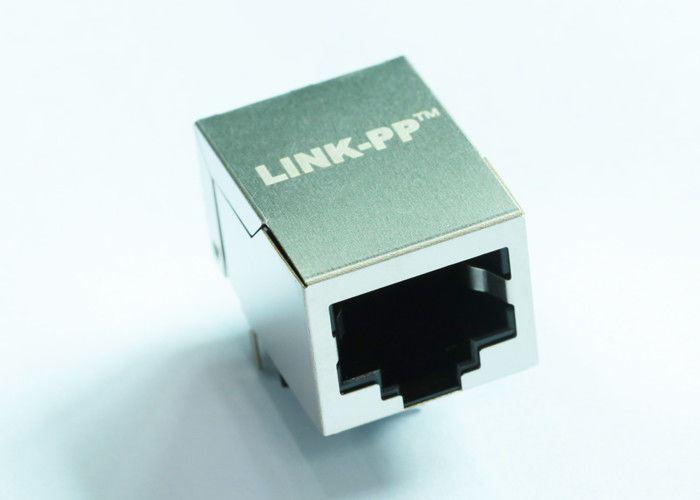

Model Number: ARJ11A-MASJ-MU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
ARJ11A-MASJ-MU2 |
Part No: |
LPJxxxxNL |
Ethernet: |
1 X 1GbE Ports |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available Free |
Specification: |
ARJ11A-MASJ-MU2 |
Part No: |
LPJxxxxNL |
Ethernet: |
1 X 1GbE Ports |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available Free |
| LINK-PP Part Number | LPJXXXXNL | |
| Designing Model | ARJ11A-MASJ-MU2 | |
| Cores per Port | 4 | |
| LED Option | WITHOUT | |
| Latch | TAB DOWN | |
| Number of Ports | 1X1 | |
| PCB Mount Angle | SIDE ENTRY | |
| Package Height (mm) | 13.84 | |
| Package Length (mm) | 21.59 | |
| Package Width (mm) | 16.26 | |
| Shield EMI Tabs | WITH | |
| Speed | 10 BASE-T | |
| Temperature | 0 TO 70℃ | |
| Turns Ratio RX | 1CT:1CT | |
| Turns Ratio TX | 1CT:1CT | |
|
||
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3ab specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
