Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11B-MESAO-A-B-ELU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
ARJ11B-MESAO-A-B-ELU2 |
Samples: |
Active&Available |
Category: |
RJ45 Modular Jack |
Latch: |
Tab Down |
TURNS RATIO: |
1CT:1CT & 1CT:1CT |
Made In China: |
LPJxxxxNL |
Part Number: |
ARJ11B-MESAO-A-B-ELU2 |
Samples: |
Active&Available |
Category: |
RJ45 Modular Jack |
Latch: |
Tab Down |
TURNS RATIO: |
1CT:1CT & 1CT:1CT |
Made In China: |
LPJxxxxNL |
|

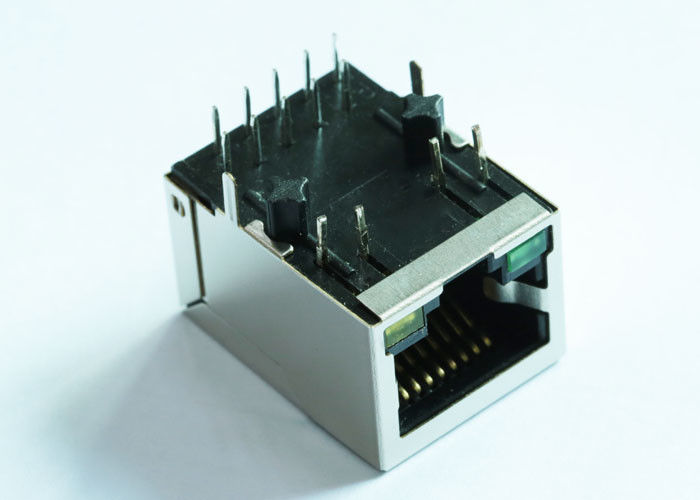

ARJ11B-MESAO-A-B-ELU2
|
|||
|
Trader Part Number
|
ARJ11B-MESAO-A-B-ELU2
|
|
|
|---|---|---|---|
|
Made in China
|
LPJxxxxNL
|
||
|
Manufacturer
|
LINK-PP China
|
||
|
Description
|
RJ45 Modular Jack | ||
|
Documents Available
|
PDF/3D/Step/IGS/Price/Cross
|
||
|
Quantity Available
|
400,000 PCS or 4-5 weeks
|
||
NOTES :
1.Designed to support application,such as SOHO(ADSLmodems),
LAN-on- Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
Applications :
1. PCMCIA Bus Interface Cards
2. CompactPCI and PXI Bus Interfaces
3. Vacuum Fluorescent Displays
4. Fibre Channel Products
