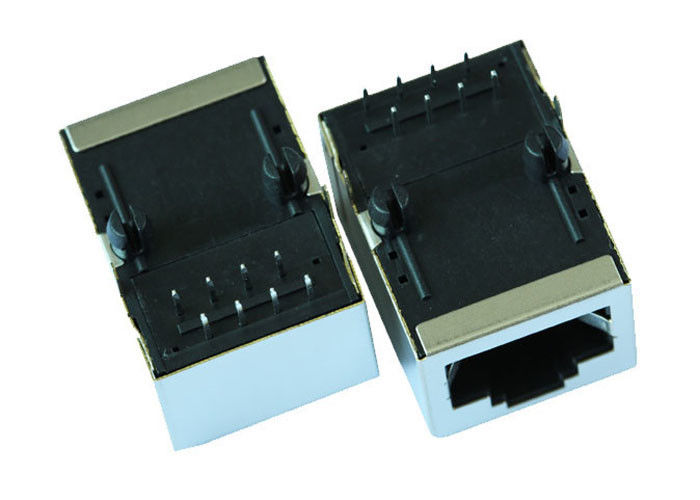

7499010003A Tab Up 10/100Base-T Magnetic RJ45 Jack Power Enable LPJ16612DNL

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 7499010003A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Specifications:
7499010003A
P-N:
LPJ16612DNL
Ethernet:
10/100 Base-T
Mounting Orientation:
Side Entry (Right Angle)
RoHS Compliant:
Yes
Samples:
Free
Specifications:
7499010003A
P-N:
LPJ16612DNL
Ethernet:
10/100 Base-T
Mounting Orientation:
Side Entry (Right Angle)
RoHS Compliant:
Yes
Samples:
Free
7499010003A Tab Up 10/100Base-T Magnetic RJ45 Jack Power Enable LPJ16612DNL
7499010003A Tab Up 10/100Base-T Magnetic RJ45 Jack Power Enable LPJ16612DNL
  • 10/100/1000 Base-T ARJ11E-MCSA-A-B-FM2 Magnetic Jack To Ethernet
  • 1X1 Tab Down With Green / Yellow LEDs
  • Through hole RJ45 modular jack
  • 350mA Current Capability
  • Available in all turn ratios used by LAN ICmanufactures

Description:

Part Number 7499010003A
Cross Compatible LPJ16612DNL
Manufacturer LINK-PP
Speed 10/100 Base-T
Height(mm) 13.45
Length(mm) 21.25
Width(mm) 15.95
Number of Port: 1
Turns Ratio (Np:Ns) 1:1; 1:1
Insertion Loss: -0.3-100MHZ -1.2dB MAX
Return Loss: 1-30MHZ -16.0dB MIN
40MHZ -14.0dB MIN
50MHZ -13.0dB MIN
60-80MHZ -10.0dB MIN
Cross Talk: 30MHZ -40.0dB MIN
60MHZ -36.0dB MIN
60-80MHZ -30.0dB MIN
CMR: 30MHZ -35.0dB MIN
60MHZ -32.0dB MIN
100MHZ -30.0dB MIN
Hi-Pot: 1500Vrms
Turn Ratio: 1CT:1CT+/-2%
OCL: 350uH MIN @ 100KHZ 100mV 8mA DC
Contacts: 0.35mm thick phos bronze plated with 6u' gold in contact area
Operating temperature range: -40°C-+85°C

Applications:
Ink and Toner Cartridges
Network Servers
Carrier Cards and Carrier Boards
PCMCIA and PC Card Products

Competitive Advantage:
2600 staff,
100% test
Flexible delivery time
