XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL

XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL
XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL

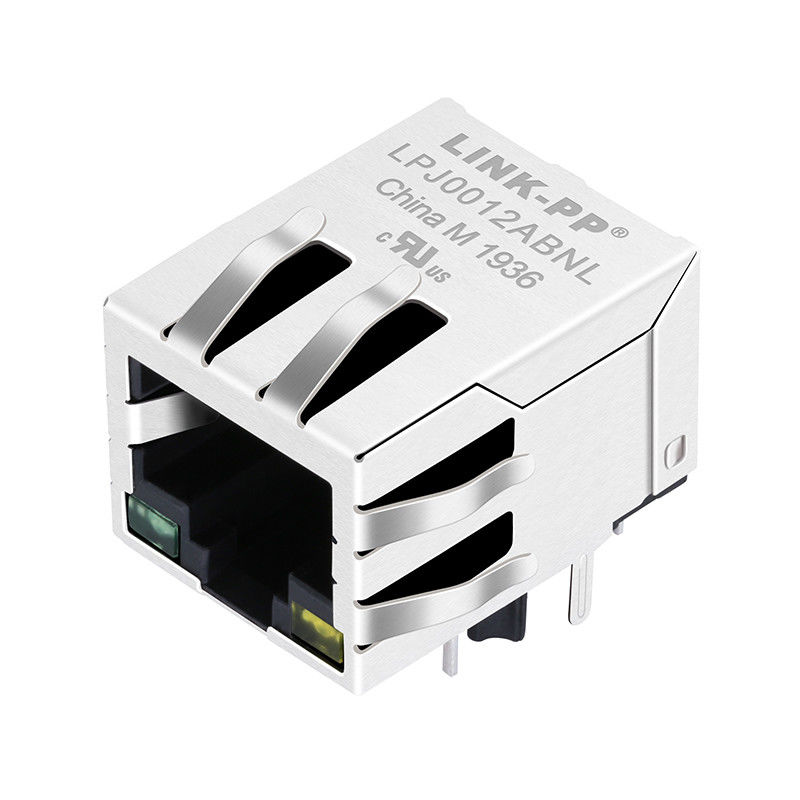

Large Image :  XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: XFATM9-CALxu1-4S
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4800K-PCS/Month
Contact Now
Detailed Product Description
Specification: XFATM9-CALxu1-4S Cross Part No: LPJ0012ABNL
Base: 1x10/100Mbps Indicator: LED ( Green / Yellow )
Mounting: R/A Shield Equal: XFATM9-CALxu1-4S = XFATM9-CALGY1-4S
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL

XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL 0

Emitting Color λp(nm) VF@IF=20mA IR @VR=5V
Green 565 1.8~2.6V 10μA max
Yellow 585 1.8~2.6V 10μA max



NOTES:

  • Designed to support application,such as SOHO(ADSLmodems),LAN-on- Motherboard(LOM),hub and Switches.
  • Meets IEEE 802.3 specification
  • Connector Materials:
  • Housing: Thermoplastic PBT+30%G.F UL94V-0
  • Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
  • Pins: Brass C2680R-H Thickness=0.35mm
  • Shield: SUS 201-1/2H Thickness=0.2mm
  • Contact plating: Gold 6 micro-inches min.In contact area.
  • Wave solder tip temperature: 265℃ Max, 5 Sec Max
  • UL Certification: File Number E484635
LINK-PP Part Number LPJ0012ABNL
Designing Model XFATM9-CALxu1-4S = XFATM9-CALGY1-4S
Cores per Port 4
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.40
Package Length (mm) 21.30
Package Width (mm) 15.90
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications :
Fibre Channel Products
Touch Screen Sensors
Defense and Security
Surface Mount Assembly

Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



XFATM9-CALxu1-4S RJ45 Modular Jack With 10/100 Integrated Magnetics LPJ0012ABNL

Tag:

industrial rj45 connector,

rj-45 ethernet jack,

modular jacks rj45
