Product Name: |

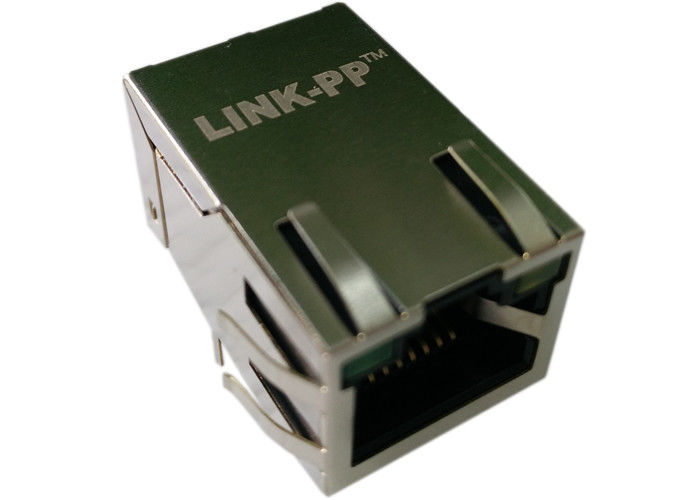

RTA-1S4A9W1F RJ45 MagJack |
Color: |
Silver |
Application: |
HUB, PC Card, Switch, Router Etc |
PCB Mounting Type: |
Through Hole |
Alternative P/N: |
LPJG17333-1A47NL |
Magnetic: |
1000Base-T |
Product Name: |
RTA-1S4A9W1F RJ45 MagJack |
Color: |
Silver |
Application: |
HUB, PC Card, Switch, Router Etc |
PCB Mounting Type: |
Through Hole |
Alternative P/N: |
LPJG17333-1A47NL |
Magnetic: |
1000Base-T |
Description of Through Hole RJ45 Connector:
The RTA-1S4A9W1F is a standard profile RJ45 magnetic jack designed for 10/100/1000 Base-T applications. It features a through-hole PCB mounting type, 1X1 port configuration, and is shielded for EMI protection. The jack is RoHS and ELV compliant, with a wave soldering capability of up to 265°C. It includes yellow/green LEDs for status indication and operates in office/premises environments with an operating temperature range of 0 to +70°C.
RTA-1S4A9W1F Specifications:
| 1. Product Type Features: | |
| 1) Product Type | Connector |
| 2) Jack Type | RJ45 |
| 3) Profile | Standard |
| 4) PCB Mounting Type | Through Hole |
| 2. Mechanical Attachment: | |
| 1) Port Configuration | 1X1 |
| 3. Electrical Characteristics: | |
| 1) Shielded | Yes |
| 4. Termination Related Features: | |
| 1) EMI Finger | Yes |
| 2) Termination Method | Solder |
| 5. Body Related Features: | |
| 1) Port Configuration | Stacked |
| 2) EMI Fingers -Top and Sides | With/Without |
| 3) Latch Orientation | Standard - Latch-Up |
| 4) PCB Tail Length | 3.50±0.50mm |
| 6. Contact Related Features: | |
| 1) Preloaded | Yes |
| 2) Contact Termination Type | Through Hole |
| 7. Housing Related Features: | |
| 1) Connector Style | Jack |
| 8. Industry Standards: | |
| 1) RoHS/ELV Compliance | RoHS-compliant, ELV-compliant |
| 2) Lead-Free Solder Processes | Wave solder capable of 265°C |
| 3) RoHS/ELV Compliance History | Always was RoHS compliant |
| 9. Identification Marking: | |
| 1) Left LED Color | Yellow / Green |
| 2) Right LED Color | Yellow / Green |
| 10. Conditions for Usage: | |
| 1) Applies To | Printed Circuit Board |
| 2) Environmental Conditions | Office / Premises |
| 3) Operating Temperature (°C ) | 0 - +70 |
| 11. Configuration Related Features | |
| 2) Status Indicator | Led |
| 3) Decoupling Capacitor | With/Without |
| 4) Rear PCB Ground Tab | With/Without |
| 12. Operation/Application: | |
| 1) Application | 10/100/1000 Base-T |
Applications of RTA-1S4A9W1F Gigabit RJ45 Connector:
1. Network Switches and Routers: RTA-1S4A9W1F’s integrated magnetic module ensures signal integrity and minimizes electromagnetic interference (EMI), making it perfect for high-density network environments.
2. Servers and Data Centers: In server and data center environments, the RTA-1S4A9W1F provides a reliable network interface that supports high-bandwidth data transmission needs.
3. Network Interface Cards (NICs): The through-hole mounting type and secure solder termination method ensure stable performance in different settings.
4. Industrial Automation Equipment: The wide operating temperature range (0℃ to 70℃) make the RTA-1S4A9W1F suitable for industrial automation equipment.
5. Smart Home and IoT Devices: In smart home and Internet of Things (IoT) applications, this Magnetic jack provides reliable wired connections for various connected devices, such as smart thermostats, security cameras, and smart appliances.
