Model Number: 6116173-5
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specifications: |
6116173-5 |
P.N: |
LPJE101AWNL |
Port: |
1x1 |
Family: |
Cat5/5e |
LEDs: |
Green / Green |
Samples: |
Available |
Specifications: |
6116173-5 |
P.N: |
LPJE101AWNL |
Port: |
1x1 |
Family: |
Cat5/5e |
LEDs: |
Green / Green |
Samples: |
Available |

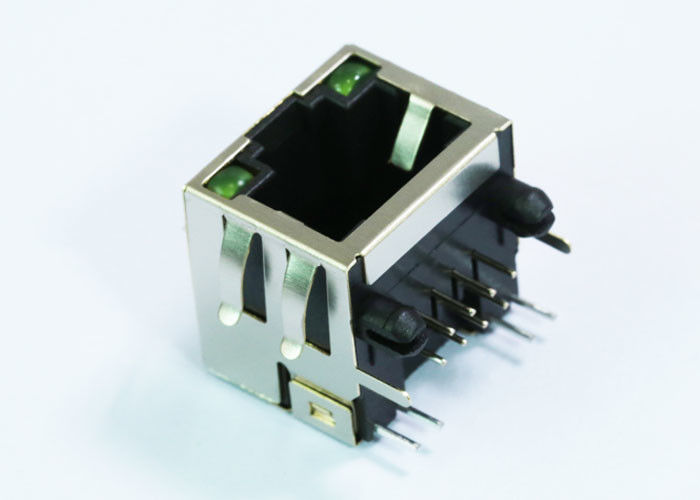

| LINK-PP Part Number | LPJE101AWNL | |
| Cross Part Number | 6116173-5 | |
| Application-Lan | ETHERNET(NoN PoE) | |
| AutomDX | YES | |
| Bst Circuit | YES | |
| Configuration RX | T,C | |
| Configuration TX | T,C | |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" | |
| Temperature | -40 TO + 85℃ | |
| Diodes | NO DIODES | |
| LED Option | GREEN/GREEN | |
| Shielding | Shielded, EMI Finger | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Latch | TAB UP | |
| Number of Ports | 1X1 | |
| PCB | FR4 | |
| PCB Mount Angle | SIDE ENTRY | |
| PCB Retaining Post | T POST | |
| Package Height (Inches) | 0.516 | |
| Package Height (mm) | 13.10 | |
| Package Length (Inches) | 0.640 | |
| Package Length (mm) | 16.26 | |
| Package Width (Inches) | 0.620 | |
| Package Width (mm) | 15.75 | |
| Pin Type | THT SOLDER | |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION | |
| Search | YES | |
| Shield EMI Tabs | WITH | |
| Turns Ratio RX | 1CT:1CT | |
| Turns Ratio TX | 1CT:1CT |
PCB JACK SPECIFICATION
1.Insulation Resistance:500MΩMIN @ 500 VDC
2.Withstanding Voltage:AC1000V 50Hz or 60Hz 1min.
3.Durability:600 Mating Circles MIN.
4.Gold Plating:(Gold Flash;1.5;3;6;15;30;50)U" Inch
5.(1)Storage: -40℃ to +85℃
(2)Opertion: -40℃ to +85℃
(3)Wave solder temperture:230℃ to 250℃,5～10 Sec.
