Home > products > RJ45 Modular Jack > 0826-1A1T-32-F 1000BASE-T RJ45 Modular Jack With Magnetics LPJK4036AHNL

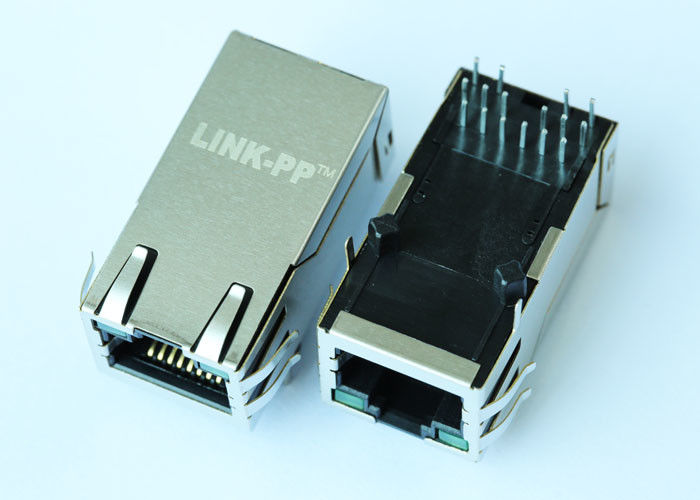

0826-1A1T-32-F 1000BASE-T RJ45 Modular Jack With Magnetics LPJK4036AHNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 0826-1A1T-32-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: Tray&Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4kk/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

industrial rj45 connector

Part Number:
0826-1A1T-32-F
Made In China:
LPJK4036AHNL
Original Munafactuer:
LINK-PP
Product Family:
Modular Jacks / Plugs
Samples:
Free Available
Speed:
10/100/1000 BASE-T
Part Number:
0826-1A1T-32-F
Made In China:
LPJK4036AHNL
Original Munafactuer:
LINK-PP
Product Family:
Modular Jacks / Plugs
Samples:
Free Available
Speed:
10/100/1000 BASE-T
0826-1A1T-32-F 1000BASE-T RJ45 Modular Jack With Magnetics LPJK4036AHNL
MIC3111C-0152W-LF3 RJ45 Modular Jack LPJK0071AONL1000BT Integrated Magnetic



Part Number
Cross Compatible
Manufacturer

 Speed

MIC3111C-0152W-LF3
LPJK0071AONL
LINK-PP
1000 Mbps

Height(mm)
Length(mm)
Width(mm)
Number of Port
13.50
32.50
16.60
1x1

Orientation
Termination
LED Color
Shielding
90° Angle (Right)
Solder
G/Y
Shielded

0826-1A1T-32-F 1000BASE-T RJ45 Modular Jack With Magnetics LPJK4036AHNL 0





NOTES:

1. Designed to support application,such as SOHO(ADSL modems),

    LAN-on-Motherboard(LOM),hub and Switches.

2. Meets IEEE 802.3 specification

3. Connector Materials:

    Housing: Thermoplastic UL94V-0

    Contact / Shield : Cooper alloy

    Shield plating : Nickel

    Contact plating: Gold 6 micro-inches min.In contact area.

4. Wave solder tip temperature : 265℃ Max

    Wave solder tip temperature Time : 5 Sec Max

5. UL Certification: File Number E484635



Application:

1. Mobile Data Acquisition

2. Video Cameras and Accessories

3. Loop Powered Devices

4. CPU Cards and Modules
