Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJHSE538B
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350000-420000/Month
Specifications: |
RJHSE538B |
P.N: |
LPJE101A65NL |
Port: |
1x1 Single |
LEDs: |
Green / Green |
Samples: |
Available 1-3 Pcs |
LED: |
GREEN , RED / GREEN , RED |
Specifications: |
RJHSE538B |
P.N: |
LPJE101A65NL |
Port: |
1x1 Single |
LEDs: |
Green / Green |
Samples: |
Available 1-3 Pcs |
LED: |
GREEN , RED / GREEN , RED |

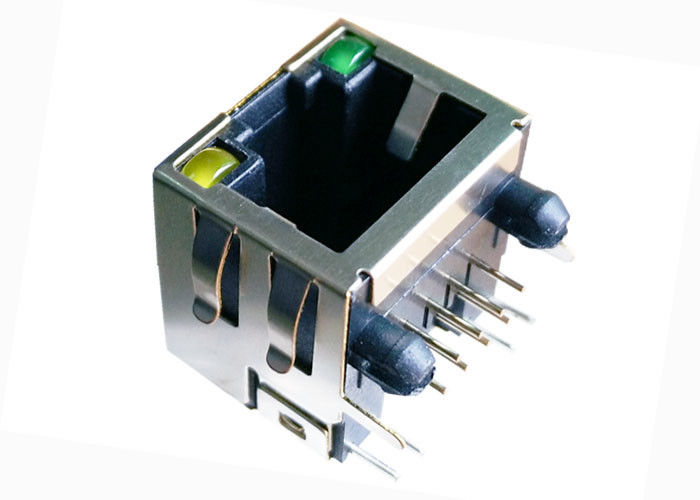

| LINK-PP Part Number | LPJE101A65NL |
| Cross Part Number | RJHSE538B |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Temperature | -40 TO + 85℃ |
| Diodes | NO DIODES |
| LED Option | GREEN,RED/GREEN,RED |
| Shielding | Shielded, EMI Finger |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.516 |
| Package Height (mm) | 13.10 |
| Package Length (Inches) | 0.640 |
| Package Length (mm) | 16.26 |
| Package Width (Inches) | 0.620 |
| Package Width (mm) | 15.75 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
|
PCB JACK SPECIFICATION
|
|
