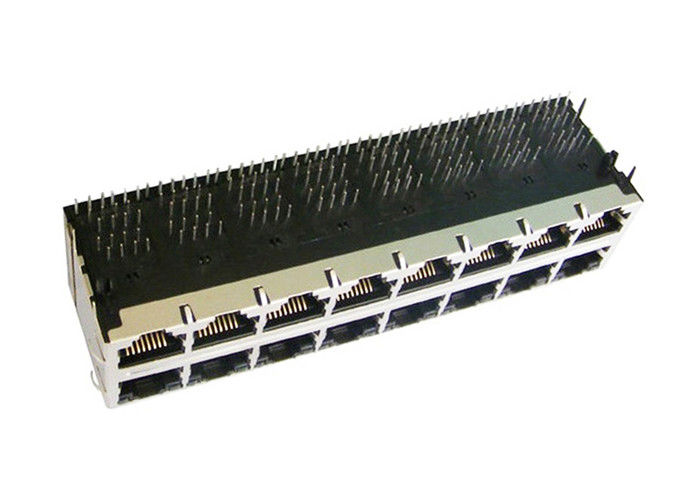

J0B-0388NL Rj45 POE Connector 2x8 Stack Port Gigabyte Magjack LPJG87011CNL

China J0B-0388NL Rj45 POE Connector 2x8 Stack Port Gigabyte Magjack LPJG87011CNL supplier

Large Image :  J0B-0388NL Rj45 POE Connector 2x8 Stack Port Gigabyte Magjack LPJG87011CNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: J0B-0388NL

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: Supportive & Competitive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Midcom PN: J0B-0388NL Made In China: LPJG87011CNL
Family: 10/100/1000Base-T Category: Rj45 POE Jack
Current: 350mA @48-57V Samples: Available

J0B-0388NL Rj45 POE Connector 2x8 Stack Port Gigabyte Magjack LPJG87011CNL



Trader Part Number
J0B-0388NL
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
LPJG87011CNL
Manufacturer
LINK-PP China
Description
Rj45 Power Over Ethernet+
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
2,000 PCS or 4 weeks



0854-2X8R-66-F ELECTRICAL SPECFICATIONS @25℃
1.Inductance: 350uH Min
  @ 100KHz,0.1V,8mA DC BIAS
2.Turns Ratio(±2%): 1CT∶1CT
3.Insertion Loss:
  1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
  1-30MHz:-18dB Min
  30-60MHz:-16dB Min
  60-80MHz:-12dB Min
  80-100MHz:-10dB Min
5.Crosstalk:
  1-100MHz:-30dB Min
6.Common Mode Rejection:
  1-100MHz:-30dB Min
  100-500MHz:-20dB Min
7.Balanced DC Line Current
  350 mA@57VDC Continuous
 500mA Max @57VDC For 200 Miliseconds
8.Hipot:1500Vrms Min @60Hz
9.Operating Temperature: -40℃~+85℃.

J0B-0388NL Rj45 POE Connector 2x8 Stack Port Gigabyte Magjack LPJG87011CNL

J0B-0388NL Rj45 POE Connector 2x8 Stack Port Gigabyte Magjack LPJG87011CNL
