1-1840012-2 Gigabit RJ45 USB Connector Rj45 Stacked With USB LPJU3836AONL

China 1-1840012-2 Gigabit RJ45 USB Connector Rj45 Stacked With USB LPJU3836AONL supplier

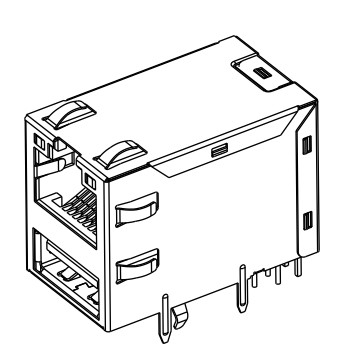

Large Image :  1-1840012-2 Gigabit RJ45 USB Connector Rj45 Stacked With USB LPJU3836AONL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 1-1840012-2

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: $1.25
Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: 1-1840012-2 / 1840012-1 Mass Production: LPJU3836AONL
Connector Type: Rj45 USB Connector Combo Applications: 10/100/1000 Base-T
Mounting Type: Through Hole Orientation: 90~ Angle (Right)
Termination: Solder Shielding: Shielded, EMI Finger

1-1840012-2 Gigabit RJ45 USB Connector Rj45 Stacked With USB LPJU3836AONL

Designing Model :1-1840012-2

Mass Production :LPJU3836AONL




1-1840012-2 Gigabit RJ45 USB Connector Rj45 Stacked With USB LPJU3836AONL
• Rj45 USB Combo / Rj45 USB Combo Connector
• USB Rj45 ConnecTor / Stacked Rj45 USB
• 1000Base-T Rj45 / USB Female To Rj45
• USB para Rj45 / Rj45 To USB connector
• Integrated design conserves valuable board space
• Minimum interwinding breakdown voltage of 1500 Vrms
• Adaptable, modular design provides higher reliability
• Reduced pin count for improved crosstalk and optimum PCB trace routing




MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description

Part Number
1-1840012-2
Application-LAN
ETHERNET(NON POE)
AutomDX
YES
Bst Circuit
YES
Configuration RX
T,C
Configuration TX
T,C
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Cores Per Port
8
Diodes
NO DIODES
LED Option
Orange,Green / Yellow
Latch
UP
Number of Ports
SINGLE PORT WITH USB
PCB
FR4
PCB Mount Angle
SIDE ENTRY
PCB Retaining Post
T POST
Pin Type
THT SOLDER
RoHS Compliant
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
YES
Shield EMI Tabs
WITH
Speed
10/100/1000 BASE-T
Temperature
-40 TO 85°C
Turns Ratio RX
1CT:1
Turns Ratio TX
1CT:1



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

1-1840012-2 Mag45 Over Single USB 1840012-1

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Other Replaceable List



1-1840012-2 0833-2X6R-55 0826-1G1T-23 1-6605706-1
0810-2H4R-28 1840012-2 1840012-1 0826-1G4T-32
0811-1X1T-06 1-1840012-2 1-6610132-1 2-1761889-1
0826-1G4T-32 2-1761889-2 2-1761889-1   6-1761889-8
1761889-1 2-1761889-1 1840012-2 2-1761889-3
0813-1X1T-43 2-1761889-3 2-1761889-2 2-1761889-1
2-1761889-3 2-1761889-1 1-1840012-2 1-1840012-2
0826-1D4T-M1-F 2-1761889-3 1840012-1  6-1761889-8
0816-1X1T-GJ-F 1-1840012-2 0826-1X4T-23 0826-1C4T-23
1761889-8  1761889-2 2-1761889-2 1761889-2
1840012-1 1761889-1 1840012-2 1840012-2
1840012-2 2-1761889-1 0826-1C4T-23 1761889-2
2-1761889-3 2-1761889-2 1840012-1 0826-1X4T-23
