Product Category: |
1x1 RJ45 Connector Through Hole |
Number Of Positions/Contacts: |
8P8C |
Type: |
Horizontal |
Mount: |
THT |
Application Cable System: |
CAT 3 |
Operation Temperture: |
-40℃ Up To +85℃ |
Wave Solder Temperture: |
230℃ To 250℃, 5-10 Sec |
Storage Temperture: |
-40℃ To +85℃ |
Part Number: |
615008140621 |
Cross Parts: |
LPJE101CNL |
Product Category: |
1x1 RJ45 Connector Through Hole |
Number Of Positions/Contacts: |
8P8C |
Type: |
Horizontal |
Mount: |
THT |
Application Cable System: |
CAT 3 |
Operation Temperture: |
-40℃ Up To +85℃ |
Wave Solder Temperture: |
230℃ To 250℃, 5-10 Sec |
Storage Temperture: |
-40℃ To +85℃ |
Part Number: |
615008140621 |
Cross Parts: |
LPJE101CNL |

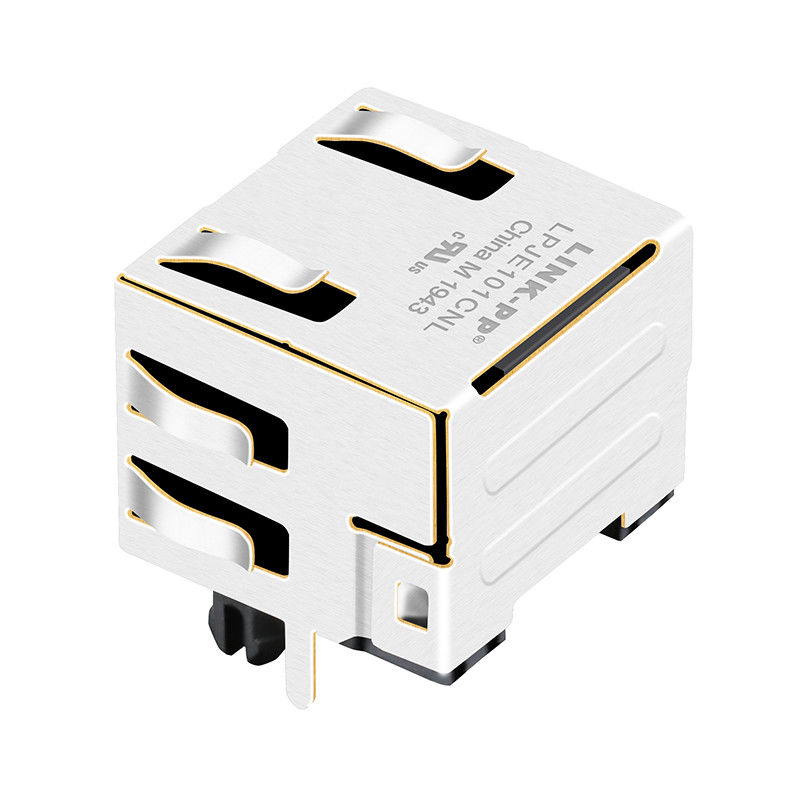

The 615008140621 is a highly reliable, standard-profile Shielded 8P8C RJ45 Jack designed for robust printed circuit board (PCB) mounting. Engineered for standard networking and telecommunications applications, this 1x1 single-port modular connector features a horizontal (right-angle) orientation with a "Tab Up" latch design.
Meeting CAT 3 performance standards, this connector operates efficiently at 1.5 A and 120 V (AC). To suit specific board designs and cost-effective integrations, this model is deliberately configured without integrated magnetics (transformers) and without LED indicators. Its full metal shielding provides excellent protection against Electromagnetic Interference (EMI), ensuring clean, stable signal transmission in demanding environments.
| Name | PCB Mount RJ45 Connector |
|---|---|
| Gender |
Jack (Female) |
| Number of Ports | 1x1 Port |
| Tab Direction |
Tab Up |
| Orientation | 90° Angle (Right) |
| Magnetics | Without |
| Mounting Style | Through Hole |
| LED Option | No |
| Working Voltage | AC120V |
| Withstanding Voltage | AC1000V 50Hz or 60Hz 1min |
| Contact Resistance |
20 mΩ |
| Insulation Resistance | 500 MΩ MIN @ DC500 V |
| Durability | 600 mating circles MIN |
| Packaging | Tray |
| BST Circuit | Yes |
| AutomDX | Yes |
| Material Properties | |
| Hi-Pot | 1500 Vrms |
| Insulator Material | Flammability Rating UL94 V-0 PBT |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold Flash |
| Contact Type | Stamped |
| Shielding Material | Bronze |
| Shielding Plating | Nickel |
Comes as part of LINK-PP's RJ45 connectors with quality assurance and after-sales support. Each connector undergoes rigorous testing and inspection during the manufacturing process. Includes incoming material inspection, resistor and capacitor inspection, welding evaluation, and extensive testing of LED components. LINK-PP offers warranty service to give customers peace of mind. This warranty covers any manufacturing defects. Our support team is always available to help you with any concerns, providing expert guidance. For long-term considerations, these connectors are rated for a peak wave soldering temperature of +260°C. Durability and longevity are ensured even under harsh welding conditions.
Engineered for durability and stable electrical performance, the Wurth 615008140621 RJ45 jack meets rigorous industry standards. Below are the comprehensive mechanical, electrical, and environmental specifications.
| Specification | Details |
| Insulator Material | PBT (Polybutylene Terephthalate) |
| Color | Black |
| Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Contact Type | Stamped |
| Contact Plating | Gold |
| Shielding Material | Bronze (Nickel-Plated) |
| Durability (Quality Class) | 500 Mating Cycles |
| Specification | Details |
| Current Rating | 1.5 A |
| Working Voltage | 120 V (AC) |
| Contact Resistance | 20 mΩ Max |
| Insulation Resistance | >1000 MΩ |
| Dielectric Withstanding Voltage | 1000 V AC / 1 minute |
| Specification | Details |
| Operating Temperature | -40°C to +85°C |
| Environmental Compliance | RoHS Compliant, Lead-Free |
| Agency Certifications | UL Certified (File: E324776) |
| Specification | Details |
| Soldering Compatibility | JEDEC Standard Lead-Free Wave Soldering Process |
| Packaging Method | Tray |
A: No, the Wurth 615008140621 is a standard modular jack without internal magnetics or transformers.
A: This part is supplied in Tray packaging, making it suitable for safe transit and automated assembly lines.
A: No, this specific model is designed without LED indicators.
