Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: RTC-11GFGJ1D
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Items: |
RTC-11GFGJ1D |
Speed: |
10/100/1000Mbps X4 Ports |
Mounting: |
Thru-Hole |
Indicator: |
Lighting On |
Cross Refe: |
RTC-11GFGJ1D = LPJGF47377AHNL |
Drawings: |
PDF 3D STEP |
Items: |
RTC-11GFGJ1D |
Speed: |
10/100/1000Mbps X4 Ports |
Mounting: |
Thru-Hole |
Indicator: |
Lighting On |
Cross Refe: |
RTC-11GFGJ1D = LPJGF47377AHNL |
Drawings: |
PDF 3D STEP |

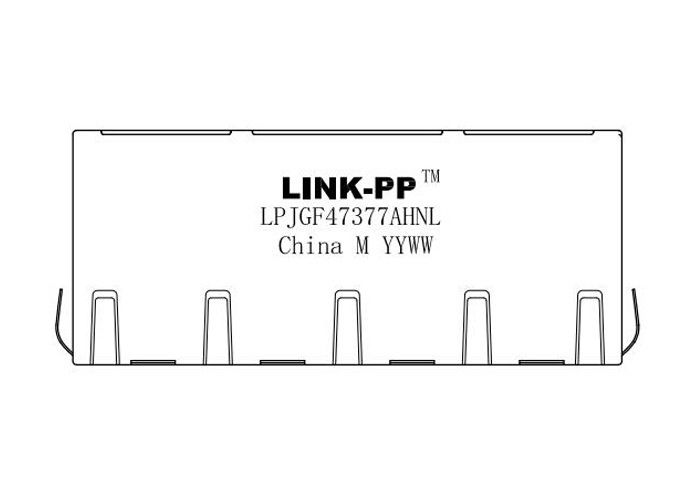

| Part Number : | LPJGF47377AHNL |
| Turns Ratio : | PRI:SEC=1CT:1 |
| OCL : | 350uH Min |
| Insertion Loss (dB max) | -1dB MIN @ 1-100MHz |
| Return Loss (dBmin @ 100Ω±15Ω) | -18dB MIN @ 1-30MHz |
| -16dB MIN @ 30-60MHz | |
| -12dB MIN @ 60-80MHz | |
| -10dB MIN @ 80-100MHz | |
| Crosstalk (dB min) | -30dB MIN @ 1-100MHz |
| Common Mode Rejection (dB min) | -30dB MIN @ 1-100MHz |
| Inductance | 350uH Min @ 100MHz,0.1V,8mA DC Bias |
| HiPot | @ 1500 VAC/0.5mA |
| Operating temperature range: | 0°C To 70°C |
