ARJ11E-MBSD-A-B-EM2 Connector Rj45 Equivalent 10/100Base-T 8P8C PCB Jack

Name: ARJ11E-MBSD-A-B-EM2 Connector Rj45 Equivalent 10/100Base-T 8P8C PCB Jack
Brand: LINK-PP
SKU: ARJ11E-MBSD-A-B-EM2
Rating: 4.9 (138 reviews)

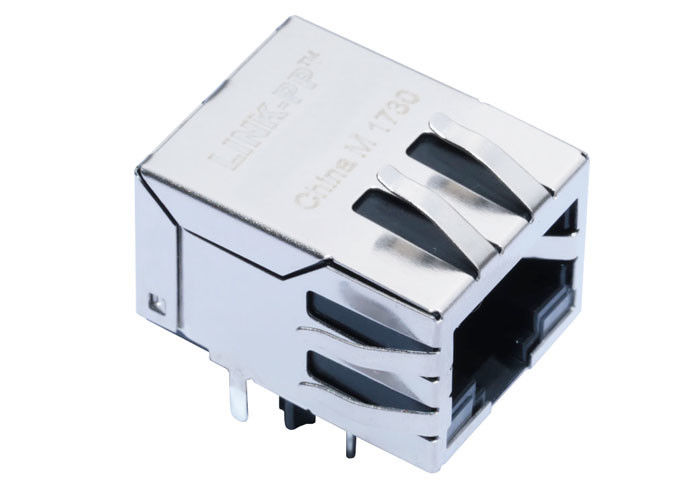

Large Image : ARJ11E-MBSD-A-B-EM2 Connector Rj45 Equivalent 10/100Base-T 8P8C PCB Jack

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	ARJ11E-MBSD-A-B-EM2

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000
Price:	Supportive
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4600K.PCS/Month

Contact Now

Detailed Product Description

Specification:	ARJ11E-MBSD-A-B-EM2	Type:	LPJxxxxNL
Latch:	Down	I/O:	10/100/1000Mbps
Indicator:	LED Flexible	Samples:	Available 1-3 Pcs
Highlight:	rj45 with magnetics , rj45 magnetic jack

ARJ11E-MBSD-A-B-EM2 Connector Rj45 Equivalent 10/100Base-T 8P8C PCB Jack

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(%%P2%):
TX=1CT:1 RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.2dB MAX @ 0.3-100MHz
4.Return Loss:
-16dB MIN @ 1-30MHz
-13.5dB MIN @ 40MHz
-11.5dB MIN @ 50MHz
-10dB MIN @ 60-80MHz
5.Cross talk:
-40dB MIN @ 30MHz
-36dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-35dB MIN @ 30MHz
-32dB MIN @ 60MHz

-30dB MIN @ 100MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃.
