APT-106 10/100 Transformer 16pins Fast Ethernet Magnetics for Auto MDI / MDIX

China APT-106 10/100 Transformer 16pins Fast Ethernet Magnetics for Auto MDI / MDIX supplier

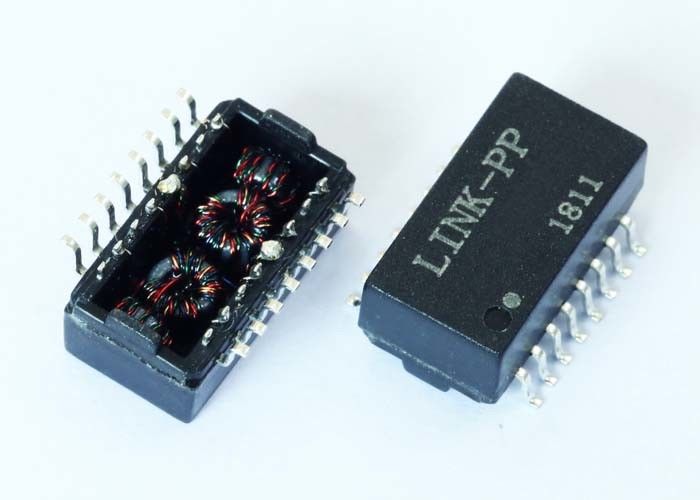

Large Image :  APT-106 10/100 Transformer 16pins Fast Ethernet Magnetics for Auto MDI / MDIX

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: APT-106

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: APT-106 Turn Ratio: 1:1
Mounting: SMT Ethernet: 1x10/100Base-Tx
Dielectric: 1500Vrms Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

APT-106 10/100 Transformer 16pins Fast Ethernet Magnetics for Auto MDI / MDIX



APT-106 10/100 Transformer 16pins Fast Ethernet Magnetics for Auto MDI / MDIXAPT-106 10/100 Transformer 16pins Fast Ethernet Magnetics for Auto MDI / MDIX

SPECIFICATIONS:



Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Application GENERAL PURPOSE
Isolation Voltage 1500 Vrms
Manufacturer Series APT-106 Cross
Mounting Feature SURFACE MOUNT
Number of Functions 1
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max +85.0 Cel
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1
Height 6.35 mm
Length 12.70 mm
Width 9.30 mm
Additional Feature HEIGHT DIM INCLUDE TERMINALS ALSO



Profile Feature Pb-Free Assembly
Average Ramp-Up Rate
(Ts max to Tp)
3°C /second max.
Preheat
-Temperature Min (Ts min) 100°C
-Temperature Max (Ts max) 150°C
-Time (ts min to ts max) 60-120 seconds
Time maintained above:
-Temperature (TL) 183°C
-Time (tL) 60-150 seconds
Peak/Classification Temperature (Tp) 230±5°C
Time within 5°C of actual Peak
Temperature (tp)
10-30 seconds
Ramp-Down Rate 6°C /seconds max
Time 25°C to Peak Temperature 6 minutes max.



APT-106 10/100 Transformer 16pins Fast Ethernet Magnetics for Auto MDI / MDIX
