Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: TS-10036-7
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Part Number: |
TS-10036-7 |
Samples: |
Available 1-3 Pcs |
Tab: |
Up |
Speed: |
1000 Base -t |
Port: |
1X4 Multi-port |
Pin To Pin: |
LPJG46813CNL |
Part Number: |
TS-10036-7 |
Samples: |
Available 1-3 Pcs |
Tab: |
Up |
Speed: |
1000 Base -t |
Port: |
1X4 Multi-port |
Pin To Pin: |
LPJG46813CNL |
|

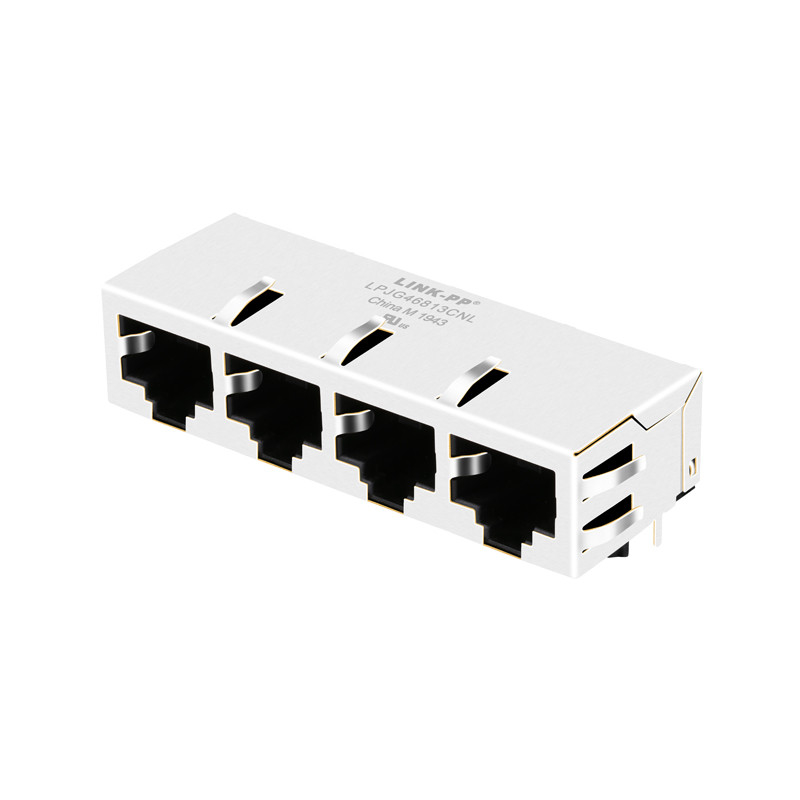

TS-10036-7
|
||
|
Trader Part Number
|
TS-10036-7
|
|
|---|---|---|
|
Made in China
|
LPJG46813CNL
|
|
|
Manufacturer
|
LINK-PP China
|
|
|
Description
|
Multi FastJack 4 Ports | |
|
Documents Available
|
PDF/3D/Step/IGS/Price/Cross
|
|
|
CORES
|
8 | |
| Port | 1x4 Multi-port | |
| Speed | 1000 BASE-T | |
Electrical Parameter @25℃:
1. Turn Ratio(±2%): Pri:Sec=1CT:1CT
2. Inductance OCL: 350uH Min @100KHz, 0.1V, 8mA DC BIAS
3. Insertion Loss: -1.0dB MAX @1-65MHz
4. Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5. Crosstalk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6. Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7. Hipot: 1500Vrms
8. Operating Temperature Range: 0℃ TO 70℃
