Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 2041376-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month

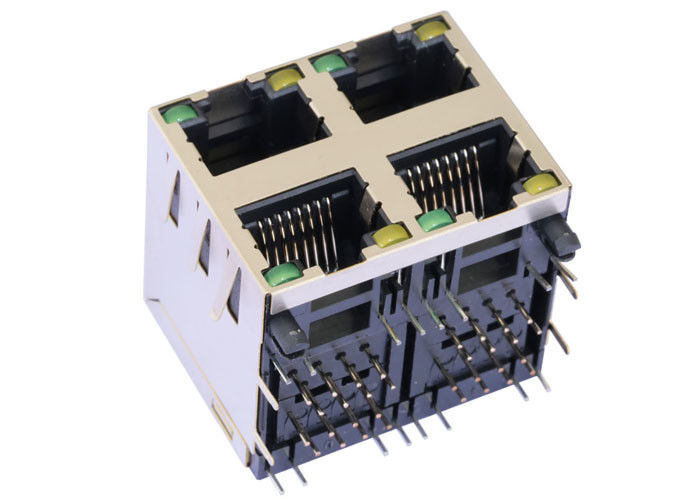

Specification: |
2041376-1 |
Part No: |
LPJE107-3AHNL |
Ethernet: |
2X2 Multi-port |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available 1 - 3 Pcs |
Specification: |
2041376-1 |
Part No: |
LPJE107-3AHNL |
Ethernet: |
2X2 Multi-port |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available 1 - 3 Pcs |
|
|
| LINK-PP Part Number | LPJE107-3AHNL |
| Cross Part Number | 2041376-1 |
| Application-Lan | ETHERNET(PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | NON |
| Diodes | NO DIODES |
| LED Option | GREEN/YELLOW |
| Shielding | Shielded, EMI Finger |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Latch | TAB UP/DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.000 |
| Package Height (mm) | 25.40 |
| Package Length (Inches) | 1.270 |
| Package Length (mm) | 32.26 |
| Package Width (Inches) | 1.108 |
| Package Width (mm) | 28.15 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | NON |
| Temperature | -40 TO +85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
NETWORKED VIDEO INTEGRATION DEVICES
STORAGE SYSTEMS FOR IP VIDEO SURVEILLANCE
IP CAMERA INSTALLATION TOOLS
PASSIVE OPTICAL ACCESS NETWORKS
LINK-PP,there are 2600 staff at present. With the abundant productive capacity of 6000k per month, we are able to deliver the goods within the short time. Moreover,we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card, Switch, Router ,PC Main board, SDH,PDH,IP Phone, xDSL modem.
Committed to bringing the highest possible level of compliance to international standards, all sites are ROSH6, ISO9000:2008 ISO14001:2004, UL,REACH ,CE, FCC,TUV,FDA Registered.
