Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: XRJD-S-21-8-8-5
Document: LPJE106-3AWNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$14
Packaging Details: Tray
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
XRJD-S-21-8-8-5 |
Port: |
2x1 Female |
Magnetics: |
Without |
LED: |
GREEN / GREEN |
Mounting: |
Side Entry (Right Angle) |
Cross: |
LPJE106-3AWNL = XRJD-S-21-8-8-5 |
Part Number: |
XRJD-S-21-8-8-5 |
Port: |
2x1 Female |
Magnetics: |
Without |
LED: |
GREEN / GREEN |
Mounting: |
Side Entry (Right Angle) |
Cross: |
LPJE106-3AWNL = XRJD-S-21-8-8-5 |

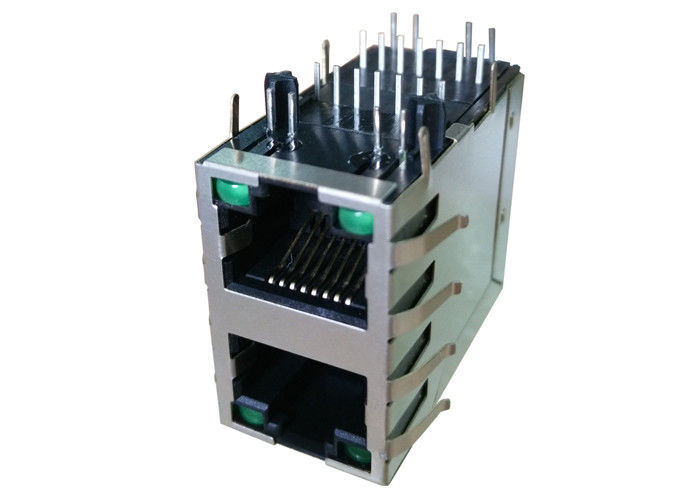

XRJD-S-21-8-8-5 stacked 2x1 RJ45 connector without integrated magnetics. Ideal for Gigabit Ethernet applications requiring external magnetics, compact PCB design, and high EMI performance.
The XRJD-S-21-8-8-5 stacked RJ45 connector without magnetics complies with IEEE 802.3ab standards, ensuring reliable Gigabit network performance. Designed in a 2x1 stacked port configuration, this connector enables high-density PCB layouts while maintaining excellent electrical and mechanical performance.
Unlike integrated magnetics RJ45 jacks, this model allows engineers to optimize PHY layout, EMI control, and signal integrity using external magnetics circuits—making it ideal for industrial networking, telecom equipment, and embedded systems.
| Parameter | Specification |
|---|---|
| Voltage Rating | 125V AC |
| Current Rating | 1.5A |
| Contact Resistance | ≤ 30 mΩ |
| Insulation Resistance | ≥ 500 MΩ (500V DC) |
| Dielectric Strength | 1000V AC (50/60Hz, 1 min) |
| Parameter | Specification |
|---|---|
| Housing Material | PBT UL94V-0 |
| Contact Material | Phosphor Bronze (C51000) |
| Contact Plating | Gold flash over nickel |
| Shield Material | Nickel-plated brass |
| Mating Force | ≤ 2.2 kgf |
| Retention Strength | ≥ 3.0 kgf |
| Durability | ≥ 750 cycles |
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | < 70% RH |
| Soldering | Wave solder 250°C / 5 sec |
| Certification | UL (File No. E484635), RoHS compliant |
Using external magnetics allows:
| Feature | Without Magnetics | With Magnetics |
|---|---|---|
| Design Flexibility | High | Limited |
| PCB Space | Flexible | More compact |
| EMI Control | External tuning | Built-in |
| Cost | Lower | Higher |
| Application | Custom systems | Plug-and-play designs |
