Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJU3101AHNL / LPJU5103BONL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Product Name: |
Magnetic RJ45 Jack |
Type: |
RJ45 Connector |
Mounting: |
Side Entry |
RoHS Compliant: |
Yes |
Indicator: |
LED Colors Can Be Selected |
Interface: |
10/100 Or Gigabit |
Product Name: |
Magnetic RJ45 Jack |
Type: |
RJ45 Connector |
Mounting: |
Side Entry |
RoHS Compliant: |
Yes |
Indicator: |
LED Colors Can Be Selected |
Interface: |
10/100 Or Gigabit |

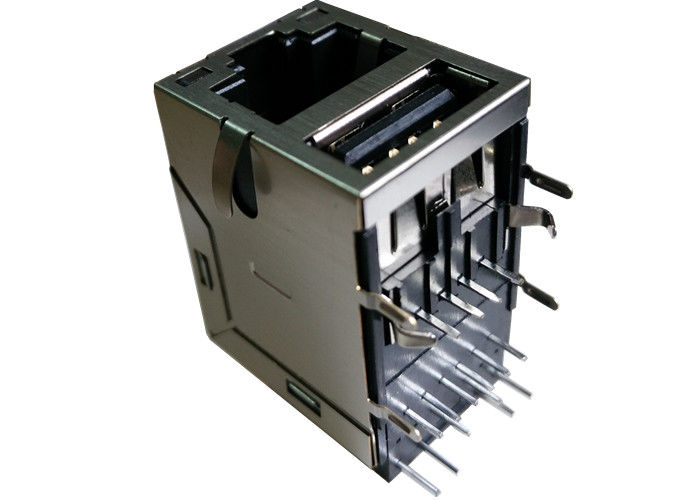

| Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics With Dual USB, Orange&Green/Yellow LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJU5103BONL / LPJU3101AHNL |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | ORANGE&GREEN/YELLOW |
| Latch | TAB UP |
| Number of Ports | SINGLE PORT WITH DUAL USB |
| PCB Mount Angle | SIDE ENTRY |
| Package Height (mm) | 31.45 |
| Package Length (mm) | 27.69 |
| Package Width (mm) | 19.08 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITHOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
