Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11B-MDSAO-LU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Product Name: |
ARJ11B-MDSAO-LU2 |
Speed: |
10/100 BASE-T |
Port: |
1X1 ,custom |
Business Type: |
RJ45 Manufacturer |
EMI Finger: |
No |
Usage: |
For Networking And Communication Equipments |
Alternate Rf: |
ARJ11B-MDSAO-LU2 => LPJxxxNL |
Product Name: |
ARJ11B-MDSAO-LU2 |
Speed: |
10/100 BASE-T |
Port: |
1X1 ,custom |
Business Type: |
RJ45 Manufacturer |
EMI Finger: |
No |
Usage: |
For Networking And Communication Equipments |
Alternate Rf: |
ARJ11B-MDSAO-LU2 => LPJxxxNL |
| Specifications | ARJ11B-MDSAO-LU2 |
| Cross Compatible | LPJxxxNL |
| Turns Ratio (Np:Ns) | 1:1; 1:1 |
| Height(mm) | 13.84 mm |
| Length(mm) | 16.26 mm |
| Width(mm) | 21.59 mm |
| Manufacturer | LINK-PP |

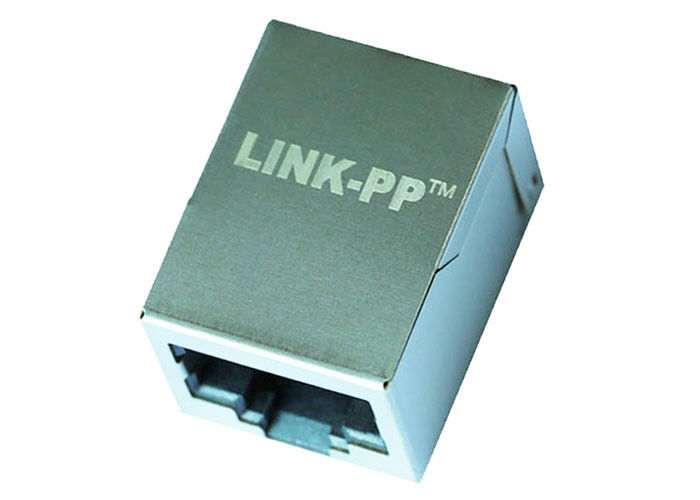

10/100 Base-T RJ45 Modular Jack
1.1X1 Tab-Down
2.meeting IEEE 802.3af/at
3.RJ45 Magjack without leds
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Description:
1X1 Tab-Down 10/100M RJ45 Magjack without leds
meeting IEEE 802.3af/at
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
