LPJ19201BGNL Surface Mount Rj45 Magnetic Jack , 10 / 100M UTP Interface Connection

Name: LPJ19201BGNL Surface Mount Rj45 Magnetic Jack , 10 / 100M UTP Interface Connection
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJ19201BGNL
Price: 14.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ19201BGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    stacked rj45 connectors, rj45 magnetic jack


Product Name:	LPJ19201BGNL	Type:	RJ45 Connector
TAB Direction:	UP	RoHS Compliant:	Yes
LED Indicator:	LED Colors Can Be Selected	Suitable LAN PHY Spec.:	10/100 Base-T

Product Name:	LPJ19201BGNL
Type:	RJ45 Connector
TAB Direction:	UP
RoHS Compliant:	Yes
LED Indicator:	LED Colors Can Be Selected
Suitable LAN PHY Spec.:	10/100 Base-T

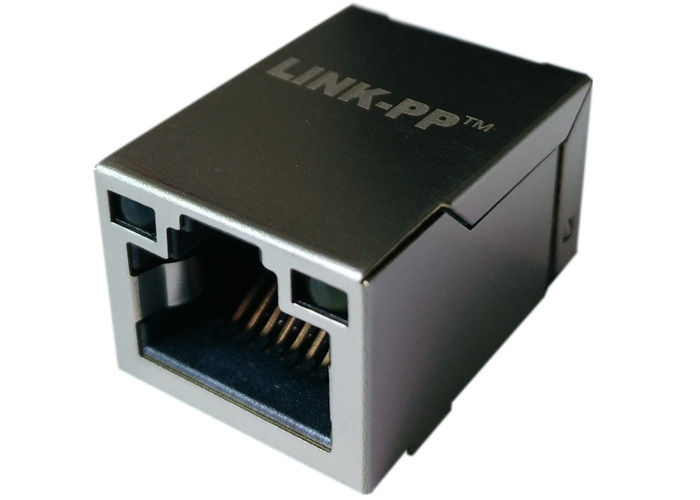

LPJ19201BGNL Surface Mount Rj45 Magnetic Jack , 10 / 100M UTP Interface Connection

LPJ19201BGNL Surface Mount Rj45 Magnetic Jack , 10 / 100M UTP Interface Connection

1. Single Port Rj 45 Jack With LED
2. Surface Mount rj45 network jack
3. Minimum 1500Vrms
4. Application:HUB, PC card, Switch, Router


Electrical Specification @25℃ 1.Turns Ratio(±2%): TX=1CT:1CT RX=1CT:1CT 2.OCL: 350uH Min @100KHz,100mV,8mA bias current 3.Insertion Loss(dB Max): 1-80MHz:-1.0 100MHz:-1.2 4.Return Loss(dB Min @100Ω): 1-60MHz:-14 60-100MHz:-10 5.Crosstalk: 1-80MHz:-35dB Min 6.IR Reflow peak temperature: 260 degc. 7.Isolation Voltage: 1500Vrms Min 8.Operating Temperature: 0℃～70℃./ -40℃～85℃
