LPJK7002A98NL Low-Profile RJ45 Magjack 11.30mm Height , Built In 10/100Mbps

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJK7002A98NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.08-$1.79

Packaging Details: 60pcs/tray,or Reel Package

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 2800K-PCS/Month

Get Best Price
Highlight:

ultra low profile jack

,

rj45 low profile

Part Number:
LPJK7002A98NL
Speed:
10/100 Base-T
Manufacturer:
LINK-PP
LED:
ORANGE&GREEN/YELLOW
Sample:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
LPJK7002A98NL
Speed:
10/100 Base-T
Manufacturer:
LINK-PP
LED:
ORANGE&GREEN/YELLOW
Sample:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet

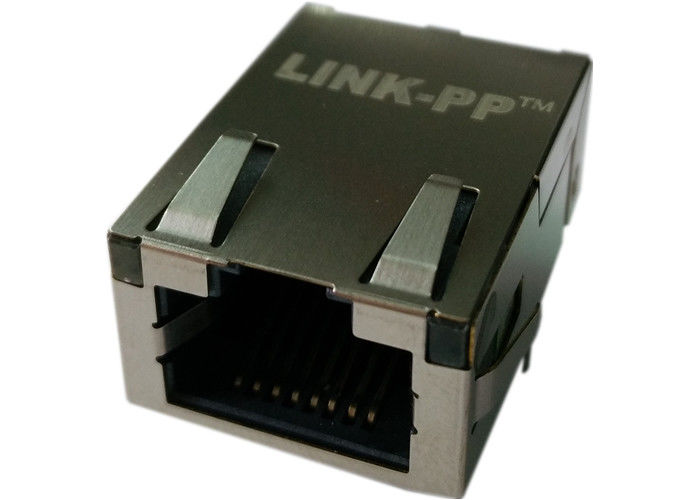

LPJK7002A98NL Low-Profile RJ45 Magjack 11.30mm Height , Built In 10/100Mbps
LPJK7002A98NL Low-Profile RJ45 Magjack 11.30mm Height , Built In 10/100Mbps

  • 1. LINK-PP LPJK7002A98NL Low Profile Rj45 With Magnetics
  • 2. Right angle modular jack Shielded with LEDs
  • 3. rj45 10/100m modular jack
  • 4. low profile RJ45 connector
  • 5. 11.30mm Height Mechanical
  • 6. LPJK7002SA98NL Short Pins Model

Single Port Low Profile RJ45 Female Connector with 10/100 Base-T Integrated Magnetics,Orange&Green/Yellow LED,Tab Up,RoHS
LINK-PP Part Number LPJK7002A98NL
Pulse Part Number J0G-0007NL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option ORANGE&GRREN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 11.30
Package Length (mm) 24.04
Package Width (mm) 16.85
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

LPJK7002A98NL Low-Profile RJ45 Magjack 11.30mm Height , Built In 10/100Mbps 0

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
