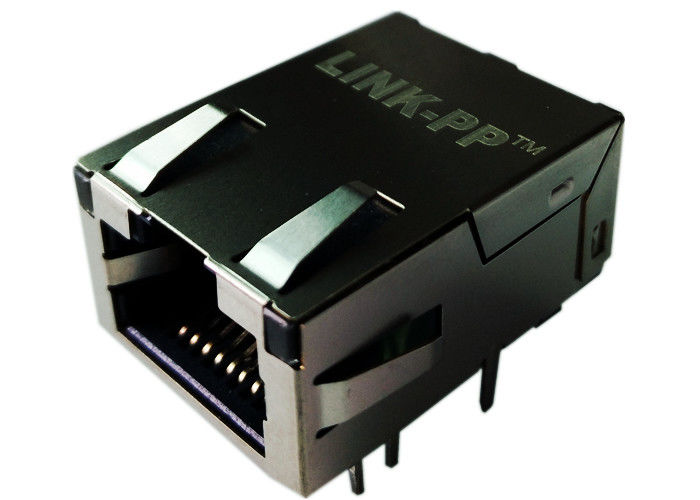

100Base-T Low-Profile RJ45 Jack LPJK7401AONL Thru-Hole With LED

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJK7401AONL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.08-$1.79

Packaging Details: 60pcs/tray,or Reel Package

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 2800K-PCS/Month

Get Best Price
Highlight:

ultra low profile jack

,

low profile rj45 connector

Part Number:
LPJK7401AONL
Speed:
10/100 Base-T
LED:
ORANGE&GREEN/YELLOW
Manufacturer:
LINK-PP
Sample:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
Part Number:
LPJK7401AONL
Speed:
10/100 Base-T
LED:
ORANGE&GREEN/YELLOW
Manufacturer:
LINK-PP
Sample:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
100Base-T Low-Profile RJ45 Jack LPJK7401AONL Thru-Hole With LED
100Base-T Low-Profile RJ45 Jack LPJK7401AONL Thru-Hole With LED



  • 1.LINK-PP LPJK7401AONL
  • 2.10/100Base-T Low-Profile RJ45 Jack
  • 3.Single Port modular jacks
  • 4.PCB Low-Profile RJ45 Jack with height 11.30mm
  • 5. LPJK7401AGNL / LPJK7401AONL Flexible LEDs



1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
