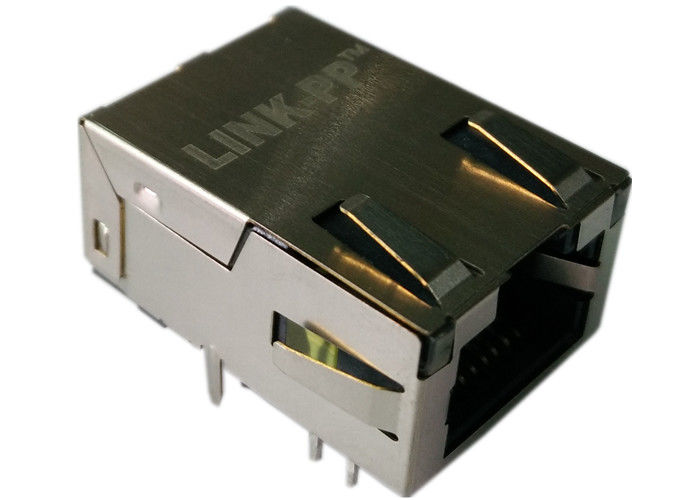

LPJK7039AGNL Gigabit Low Profile Rj45 10/100/1000 With Magnetics

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJK7039AGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.08-$1.79

Packaging Details: 60pcs/tray,or Reel Package

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 2800K-PCS/Month

Get Best Price
Highlight:

RJ45 Low Profile Connector

,

1000 Base-T RJ45 Low Profile

,

Low Profile Ethernet Jack

PN:
LPJK7039AGNL
Speed:
1000 Base-T
Number Of Ports:
SINGLE
Temperature:
0℃ TO + 70℃
Samples:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
PN:
LPJK7039AGNL
Speed:
1000 Base-T
Number Of Ports:
SINGLE
Temperature:
0℃ TO + 70℃
Samples:
Free
File:
PDF/3D/ISG/Stp/Step/Datasheet
LPJK7039AGNL Gigabit Low Profile Rj45 10/100/1000 With Magnetics



RJ45 Connector With Magnetics Features:



1. LPJK7039AGNL Single Port Low Profile RJ45 Connector

2. Meets IEEE 802.3 specification

3. Right Angle rj45 Jack With LED Indicators

4. Dimension 24.04x17.78x11.30mm

5. Wave peak temperature: 260℃, 5 Sec.

6. Connector Materials:
Housing: Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.

7. Price and performance flexibility

8. Advanced EMl and ESD protection


RJ45 Low Profile Connector Specifications :





Single Port Low Profile RJ45 Connector with 1000 Base-T Integrated Magnetics, Yellow/Green LED, Tab Up, RoHS

LINK-PP Part Number

LPJK7039AGNL

Application-Lan

ETHERNET(NoN PoE)

Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Cores per Port

8

Diodes

NO DIODES

LED Option

YELLOW/GREEN

Latch

TAB UP

Number of Ports

1X1

PCB

FR4

PCB Mount Angle

SIDE ENTRY

PCB Retaining Post

T POST

Package Height (mm)

11.30

Package Length (mm)

24.04

Package Width (mm)

16.85

Pin Type

THT SOLDER

RoHS Compliant

YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION

Search

YES

Shield EMI Tabs

WITH

Speed

1000 BASE-T

Temperature

0 TO 70℃

Turns Ratio RX

1CT:1CT

Turns Ratio TX

1CT:1CT



Low Profile Ethernet Jack Applications:



NETWORK COMMUNICATION: Switch, Router, STB, Gateway and Base Stations.
COMSUNER ELECTRONIC: Optical Network Terminal-ONT, Femtocell, Smart Home, Smart TV-OTT.
TRANSPORTATION Infotainment: Infotainment, Driving Assistance System-ADAS, Cameras, Battery Management System-BMS, Radar, Body Control.
INDUSTRY: Single Pair Ethernet(SPE), Automation, Industrial Communication, Safety Control.
MEDICAL: Infusion Mercury-Infusion Pump, Medical Imaging-Imaging, Monitor, Nuclear Magnetic Resonance.
