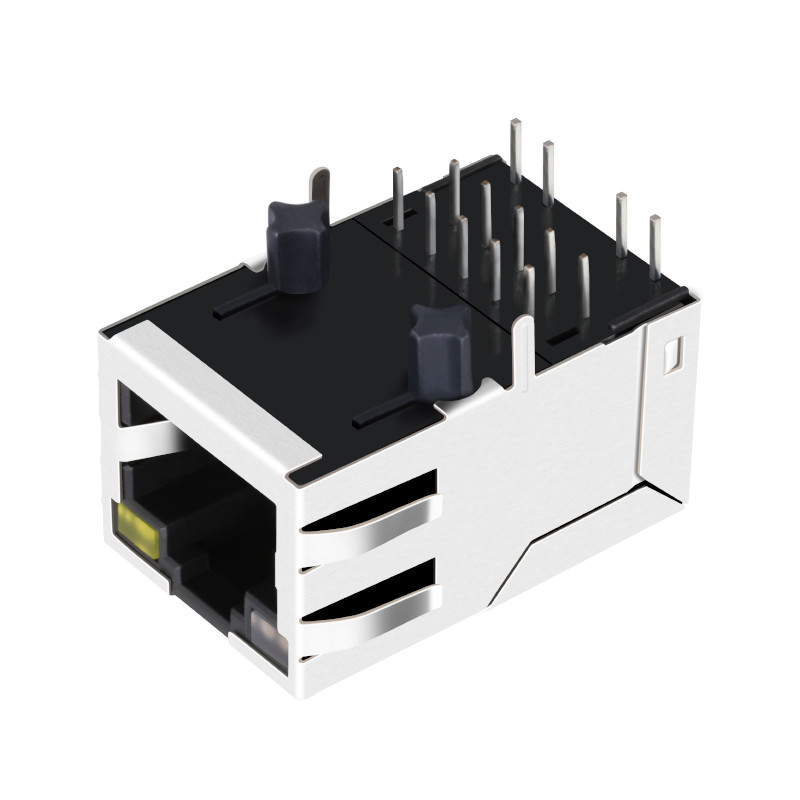

RTA-164AGC1A Single Port Integrated RJ45 Magjack LPJG17370-1AONL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJG17370-1AONL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

RTA-164AGC1A

,

Integrated RJ45 Magjack

,

RJ45 Magjack

Original:
RTA-164AGC1A
Equivalent:
LPJG17370-1AONL
Ethernet:
1x1000 Gigabit
Jack:
Female RJ45
Samples:
Free Available
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Original:
RTA-164AGC1A
Equivalent:
LPJG17370-1AONL
Ethernet:
1x1000 Gigabit
Jack:
Female RJ45
Samples:
Free Available
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
RTA-164AGC1A Single Port Integrated RJ45 Magjack LPJG17370-1AONL
RTA-164AGC1A RJ45 Single Port LPJG17370-1AONL PCB Connector with Filter Inside





LINK-PP Part Number LPJG17370-1AONL
Application-Lan ETHERNET(NoN PoE)
Part Number RTA-164AGC1A
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Orange&Green/Yellow Leds
Latch TAB UP
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (Inches/mm) 0.531/13.50
Package Length (Inches/mm) 1.00/25.4
Package Width (Inches/mm) 0.640/16.25
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0℃ TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly






RTA-164AGC1A Single Port Integrated RJ45 Magjack LPJG17370-1AONL 0 Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-100MHz
Return Loss -18dB MIN @ 1-30MHz
-16dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
Cross talk
-30dB MIN @ 1-100MHz
Common Mode Rejection -30dB MIN @ 1-100MHz
Hipot Test 1500Vrms MIN
Operating Temperature Range 0℃ TO 70℃.



1. Tab-down RJ45 Jack LPJG17370-1AONL
2. PCB RJ45 Connectors
3. Network Interface Module Rj45 Jack
4. Hi-pot 1500Vrms
5. LINK-PP Lan Connectors Rj45 With Led Activity
6. Document : PDF / Datasheet / 3D / IGS / Step /Stp


NOTES:

1. Designed to support application,such as SOHO(ADSL modems),

    LAN-on-Motherboard(LOM),hub and Switches.

2. Meets IEEE 802.3 specification

3. Connector Materials:

    Housing: Thermoplastic UL94V-0

    Contact / Shield : Cooper alloy

    Shield plating : Nickel

    Contact plating: Gold 6 micro-inches min.In contact area.

4. Wave solder tip temperature : 265℃ Max

    Wave solder tip temperature Time : 5 Sec Max
