Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11B-MBSBQ-A-B-EMU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4000K/month
P/N: |
ARJ11B-MBSBQ-A-B-EMU2 |
EMI Finger: |
Without |
Port: |
Single |
LED: |
GREEN/YELLOW |
Samples: |
Free |
Alternative Rf: |
ARJ11B-MBSBQ-A-B-EMU2=>LPxxxNL |
Documents Available: |
PDF/3D/Step/IGS/STP |
P/N: |
ARJ11B-MBSBQ-A-B-EMU2 |
EMI Finger: |
Without |
Port: |
Single |
LED: |
GREEN/YELLOW |
Samples: |
Free |
Alternative Rf: |
ARJ11B-MBSBQ-A-B-EMU2=>LPxxxNL |
Documents Available: |
PDF/3D/Step/IGS/STP |

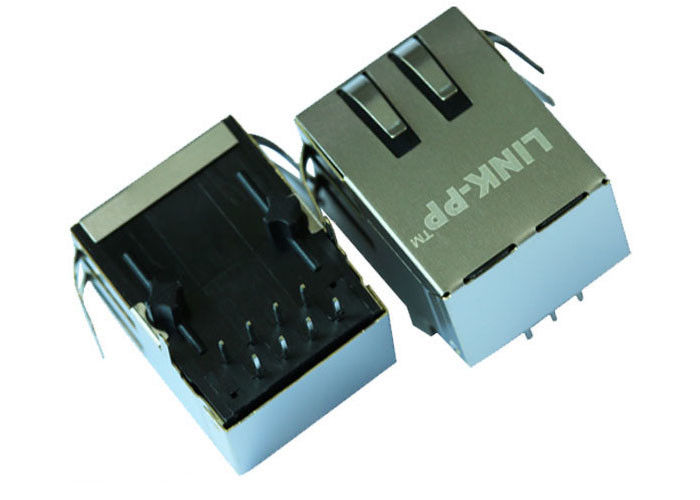

Tab down PCB IEEE RJ45 Jack 1 X 1 Port
1.Right Angle RJ45 Connector
2.Shielded RJ45 Connector
3.Single Port RJ45 Connector
4.Through hole rj45 modular jack
Description:
1X1 Tab-down 10/100M RJ45 connector with green/yellow leds
| Height(mm) | 13.84 mm |
| Length(mm) | 21.59 mm |
| Width(mm) | 16.26mm |
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Electrical Characteristics:
1) Shielded = Yes
3. Body Related Features:
1) Port Configuration = Single
2) EMI Fingers -Top and Sides = Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
4. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
5. Identification Marking:
1) Left LED Color (Position #1) = green - 250 ohm resistor
2) Right LED Color (Position #2) = yellow - 250 ohm resistor
6. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,ANX Automotive Network exchange,fast ethernet switch
