Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11A-MDSN-MU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5000K/month
Product Name: |
ARJ11A-MDSN-MU2 |
LED: |
Without |
Port: |
1X1 PORT |
Samples: |
Available 3 PCS |
Alternate Rf: |
ARJ11A-MDSN-MU2 => LPJxxxNL |
Temperature:: |
0 TO 70 / -40 TO 85 |
Product Name: |
ARJ11A-MDSN-MU2 |
LED: |
Without |
Port: |
1X1 PORT |
Samples: |
Available 3 PCS |
Alternate Rf: |
ARJ11A-MDSN-MU2 => LPJxxxNL |
Temperature:: |
0 TO 70 / -40 TO 85 |
| Speed: | 10 BASE-T | Height(mm) | 13.84 |
| Number of Ports: | 1X1 PORT | Length(mm) | 21.59 |
| Application - LAN: | ETHERNET (WITHOUT PoE) | Width(mm) | 16.26 |
| Latch: | DOWN | Turns Ratio (Np:Ns) | 1:1; 1:1 |
| Pin Type: | THT SOLDER | Temperature: | 0 TO 70/-40 TO 85 |

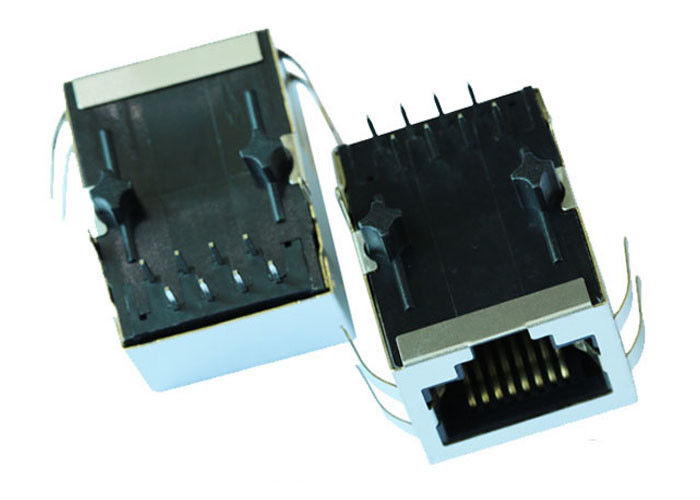

2. Magnetic RJ45 Jack Description:
| Listing Description: | |
| 1) manufacture RJ45 Magnetic Jack for 16years Experience | |
| 1)ISO9001,SGS,UL,CE,REACH Certification | |
| 3)Main customer:TI GE SONY Samsung IBM CANON | |
| 4)PULSE OEM for 9years | |
| Detailed Description: | |
| 1.Characteristics: | 1)RJ45 Connector with integrated transformer/common mode choke |
| 2)Available in SMD, THT and THT with USB | |
| 3)350µH min. OCL with 8mA bias | |
| 4)Complies with IEEE 802.3 | |
| 5)Extended temperature range -40°C to +85°C available | |
| 2. Operation/Application: | 1)10 Base-T |
| 2)xDSL Modems | |
| 3)Embedded PC | |
| 4)LAN Applications | |
| 5)Hub, Router, Switches | |
| 3. Mechanical Attachment: | |
| 1) Jack Configuration | |
| 3. Electrical Characteristics: | |
| 1) Shielded | Yes |
| 4. Termination Related Features: | |
| 1) EMI Finger | Yes |
| 2) Termination Method | Solder |
| 5. Body Related Features: | |
| 1) Port Configuration | Single |
| 2) EMI Fingers -Top and Sides | With/Without |
| 3) Latch Orientation | Standard - Latch Down |
| 4) PCB Tail Length | 3.50±0.50mm |
| 6. Contact Related Features: | |
| 1) Preloaded | Yes |
| 2) Contact Termination Type | Through Hole |
| 7. Housing Related Features: | |
| 1) Connector Style | Jack |
| 8. Industry Standards: | |
| 1) RoHS/ELV Compliance | RoHS compliant, ELV compliant |
| 2) Lead Free Solder Processes | Wave solder capable to 265°C |
| 3) RoHS/ELV Compliance History | Always was RoHS compliant |
| 9. Identification Marking: | |
| 1) Left LED Color | Green or Yellow |
| 2) Right LED Color | Green or Yellow |
| 10. Conditions for Usage: | |
| 1) Applies To | Printed Circuit Board |
| 2) Environmental Conditions | Office / Premises |
| 3) Operating Temperature (°C ) | 0 - 70/-40 - +85 |
| 11. Configuration Related Features | |
| 1) Magnetic Circuit | 3D15 |
| 2) Status Indicator | Led |
| 3) Decoupling Capacitor | With/Without |
| 4) Rear PCB Ground Tab | With/Without |
| 5) Signal Lead Quantity | 8 |
3. Magnetic RJ45 Jack Main customer:
TEXAS INTRUMENTS SAMSUNG GE SONY CANNON FLEXTRONICS
LINK-PP are the best supplier of Texas Instruments ,Samsung, and General Electric. Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0
you will look at our logo: "LINK-PP" on BeagleBone Black.
BeagleBone Black is a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists. Boot Linux in under 10-seconds and get started on Sitara™ AM335x ARM Cortex-A8 processor development in less than 5 minutes with just a single USB cable.
Magnetic RJ45 Jack Production Line:
TEST EQUIPMENTS:
1. ROHS Analyzer
2.EMI TESTING
3.HIPOT TESTING
5.Auto Transformer Tester
